Dakshin Mukhi Ghar Ka Naksha is shown in this article. This Ghar ka naksha includes the Ground and the first floor. The pdf and dwg files are available below.

  SOUTH FACING HOUSE PLANS   Sep 29, 2024   0   18180  Add to Reading List
Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu
Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu
Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu
Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu

Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu

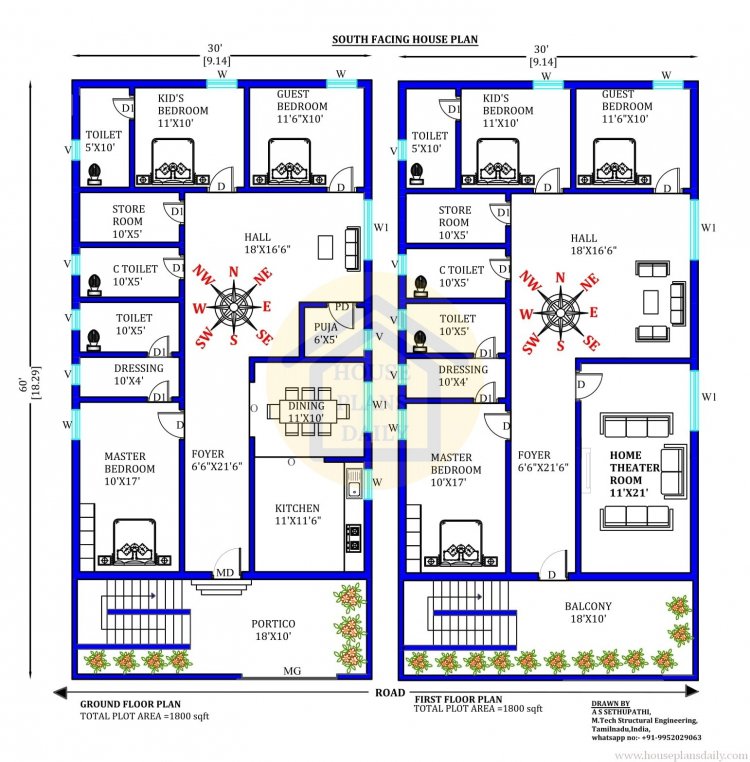

Dakshin Mukhi Ghar Ka Naksha is shown in the below image which includes the ground and first floor plan. This 30x60 Home Design As Per Vastu is a south facing home design. The total plot area of the first and the ground floor is 1800 Sqft and 1800 Sqft respectively. The ground floor consists of a hall, a master bedroom with an attached toilet, a guest bedroom, a kid's bedroom with an attached toilet,  an open kitchen with a dining area, a store room, a puja room, a common toilet, a foyer space, and a spacious portico.

Similarly, the first floor consists of a hall, a master bedroom with an attached toilet, a guest bedroom, a kid's bedroom with an attached toilet, a home theatre, a store room, a puja room, a common toilet, a foyer space, and a spacious balcony.

modern house plans

Dakshin Mukhi Ghar Ka Naksha

Dakshin Mukhi Ghar Ka Naksha-Ground Floor

free house plans

Home Design As Per Vastu

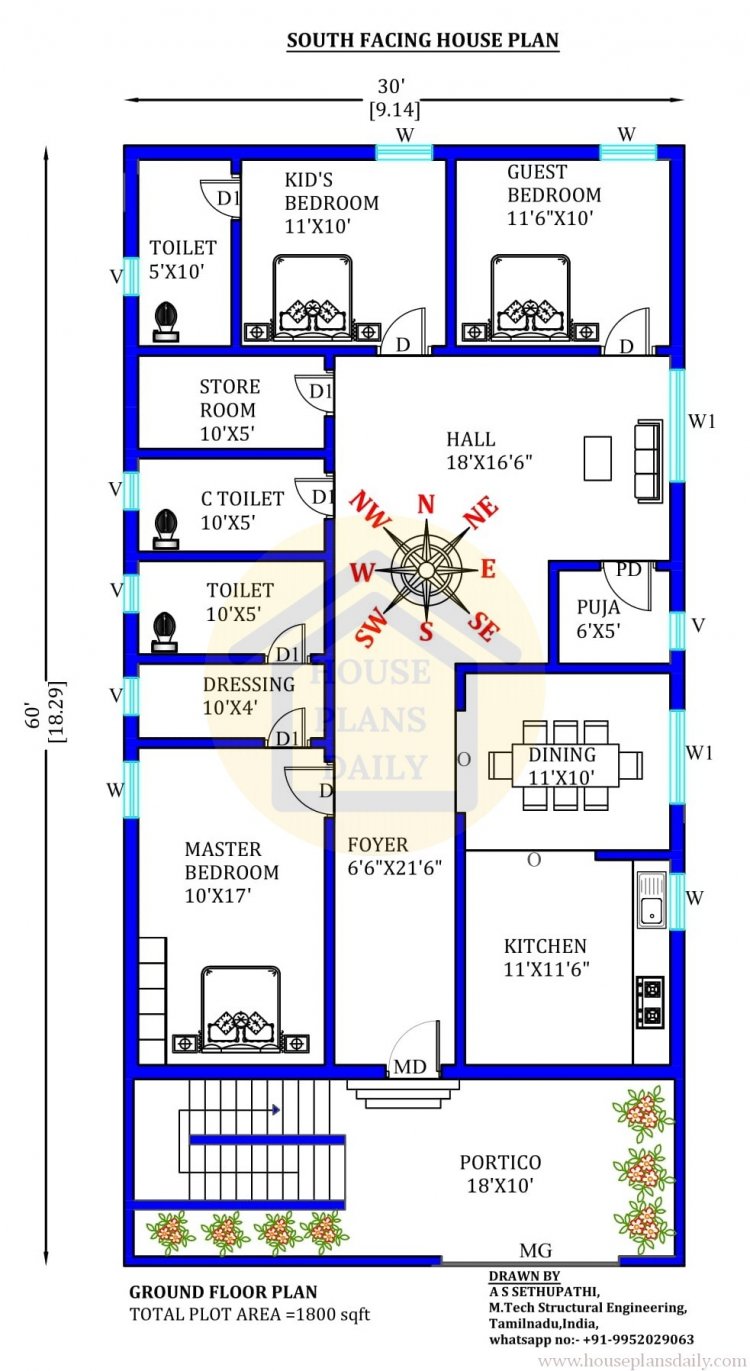

The above image is the ground floor of a 30x60 Home Design As Per Vastu. It includes a hall, a master bedroom with an attached toilet and dressing area, a guest bedroom, a kid's bedroom with an attached toilet, an open kitchen with a dining area, a common toilet, a puja room, a store room, a foyer space, and a spacious portico area. The total plot area of this ground floor is 1800 Sqft respectively. Dimensions of each room are mentioned on the plan and the Furniture has also been placed as per Vastu shastra for clear reference.

The Hall or the living area is 18x16.6 feet in size. The master bedroom is 10x17 feet in size with bed placement facing north. The guest bedroom is 11.6x10 feet in size. The kid's bedroom is 11x10 feet in size with an attached toilet of size 5x10 feet. The kitchen is 11x11.6 feet in size and kept open with a dining area of 11x10 feet in size. The puja room is 6x5 feet in size as per Vastu compliance. The store room is 10x5 feet in size. The master bedroom attached toilet is 10x5 feet in size with the commode placement facing south as per Vastu shastra.

The home design also includes a spacious portico of size 18x10 feet and a foyer space of size 6.6x21.6 feet. The common toilet is 10x5 feet in size provided inside the house. The staircase to access the first floor is provided outside the home. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture is placed as per Vastu shastra principles.

Refer to these articles,

30x60 Home Design As Per Vastu-First Floor

simple floor plans

30x60 Home Design As Per Vastu

The above image is the first floor of a 30x60 North Facing Simple Home Design. It includes a hall, a master bedroom with an attached toilet and dressing area, a guest bedroom, a kid's bedroom with an attached toilet, a home theatre, a common toilet, a puja room, a store room, a foyer space, and a balcony. The total plot area of this ground floor is 1800 Sqft respectively. Dimensions of each room are mentioned on the plan and the Furniture has also been placed as per Vastu shastra for clear reference.

The Hall or the living area is 18x16.6 feet in size. The master bedroom is 10x17 feet in size with bed placement facing north. The guest bedroom is 11.6x10 feet in size. The kid's bedroom is 11x10 feet in size with an attached toilet of size 5x10 feet. The home theatre room is 11x21 feet in size. The puja room is 6x5 feet in size as per Vastu principles. The store room is 10x5 feet in size. The master bedroom attached toilet is 10x5 feet in size with the commode placement facing south as per Vastu shastra.

The above modern house design also includes a balcony. The staircase is provided outside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

Download the dakshin mukhi makan ka vastu pdf and dwg files for free

house plans idea

Ghar Ka Naksha

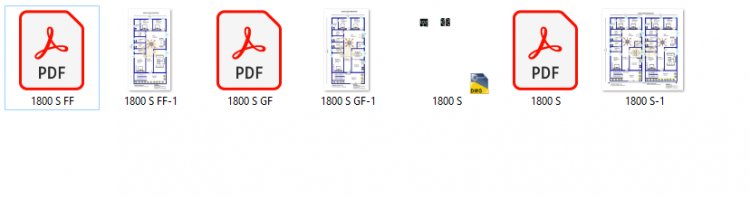

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this south facing house plans per vastu for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to our other articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans and elevation designs.
