Hostel Floor Plans are elaborated in this article. This hostel plan includes 6 floors and a basement with car parking. The elevation design is also included.
Bhagyawati
Sep 13, 2024
Hostel Plan | Hostel Floor Plan | Hostel Building Plan
hostel floor plan
The above-shown image is the hostel floor plan with six floors and a basement for car parking. The built-up area of the basement and the remaining floors is 2024 Sqft respectively. The basement is meant for complete car parking whereas the above remaining floors include 8 rooms with 4 beds arranged.
small hostel floor plan, school hostel floor plan, hostel ground floor plan, hostel room size, hostel room size in india, hostel students are called, house design, home design, ghar ka design, ghar ka naksha, home designs as per vastu shastra, vastu home,house plans daily
Hostel Plan- Basement Plan
hostel building plan
The above image is the basement floor plan of a hostel building. It includes the car parking area and lift-occupied space. The total plot area of this basement is 2250 Sqft and the built-up area is 2024 Sqft respectively. This hostel basement design is planned below the ground level so that the functioning of the hostel goes smoothly.
Hostel Floor Plan-Ground Floor
hostel floor plan-ground floor
The above image is the ground floor of a hostel building plan. It includes two shops, a kitchen, two dining areas, a reception, and a dining hall. The total plot area of this floor is 2250 Sqft and the built-up area is 2024 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.
The two shops are 11.6x14.3 feet in size. The kitchen is 11.6x14.3 feet in size. The two dining areas are 11.6x14.3 feet and 23.9x14.3 in size. The reception area is 11.6x14.3 feet in size and the waiting area is also 11.6x14.3 feet in size. A lift and staircase are also provided for accessing the above reaming floors.
Hostel Building Plan-First & Remaining Floors
hostel plan
hostel floor plan-second floor
hostel floor plan-third floor
hostel floor plan-fourth floor
hostel floor plan-fifth floor

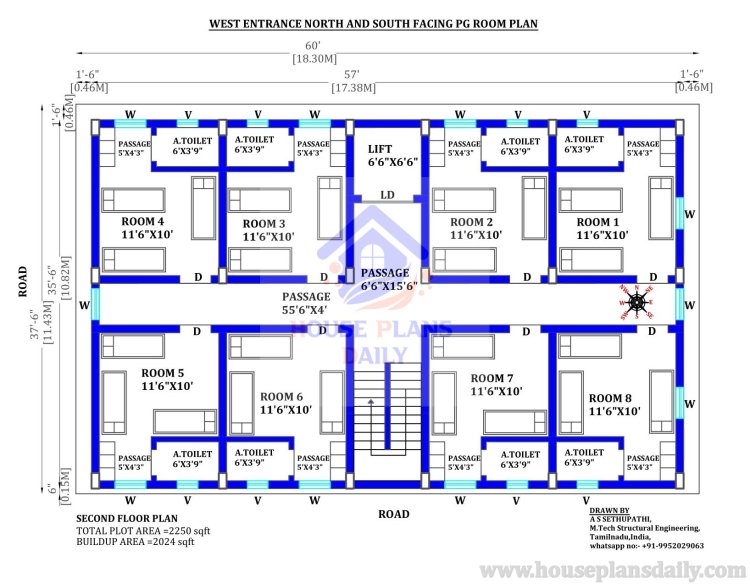

The above-shown images of the first and the remaining 4 floors of a hostel building plan. It floor includes eight rooms with attached toilets. The total plot area of these floors are 2250 Sqft and the built-up area is 2024 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.
Each room on the plan is of size 11.6x10 feet. The attached toilet is 6x3.9 feet in size and a passage of size 5x4.3 feet are provided. A lift and staircase are also provided for accessing the above reaming floors.
hostel plans pdf

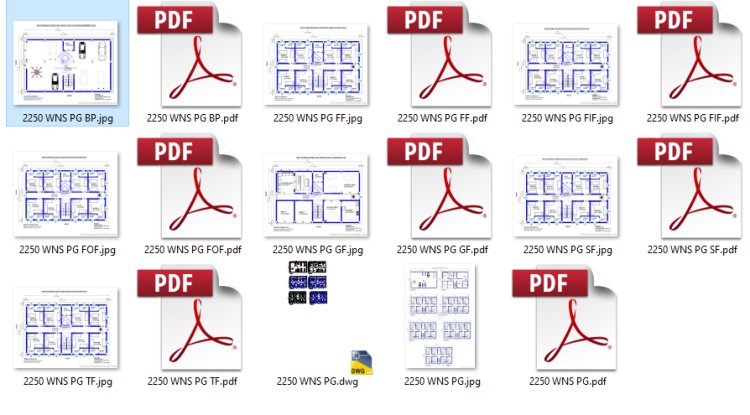

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this hostel design for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
