High ceiling house plan is given in this article. Here, the floor plan is included the duplex house, and 2bhk houses. The length and breadth of the northeast houses are 50’ and 114’ respectively.
Meera
Sep 13, 2024
High Ceiling House | 5 Bedroom House
High ceiling house plan
High ceiling house plan is given in this article. Here, the floor plan is included the duplex house, and 2bhk houses. The length and breadth of the northeast houses are 50’ and 114’ respectively. The total built-up area of this house plan is 5700 sqft. The rear house built-up area is 1925 sqft. The front house built-up area is 1850 sqft.
High Ceiling Living Room | Duplex Plan

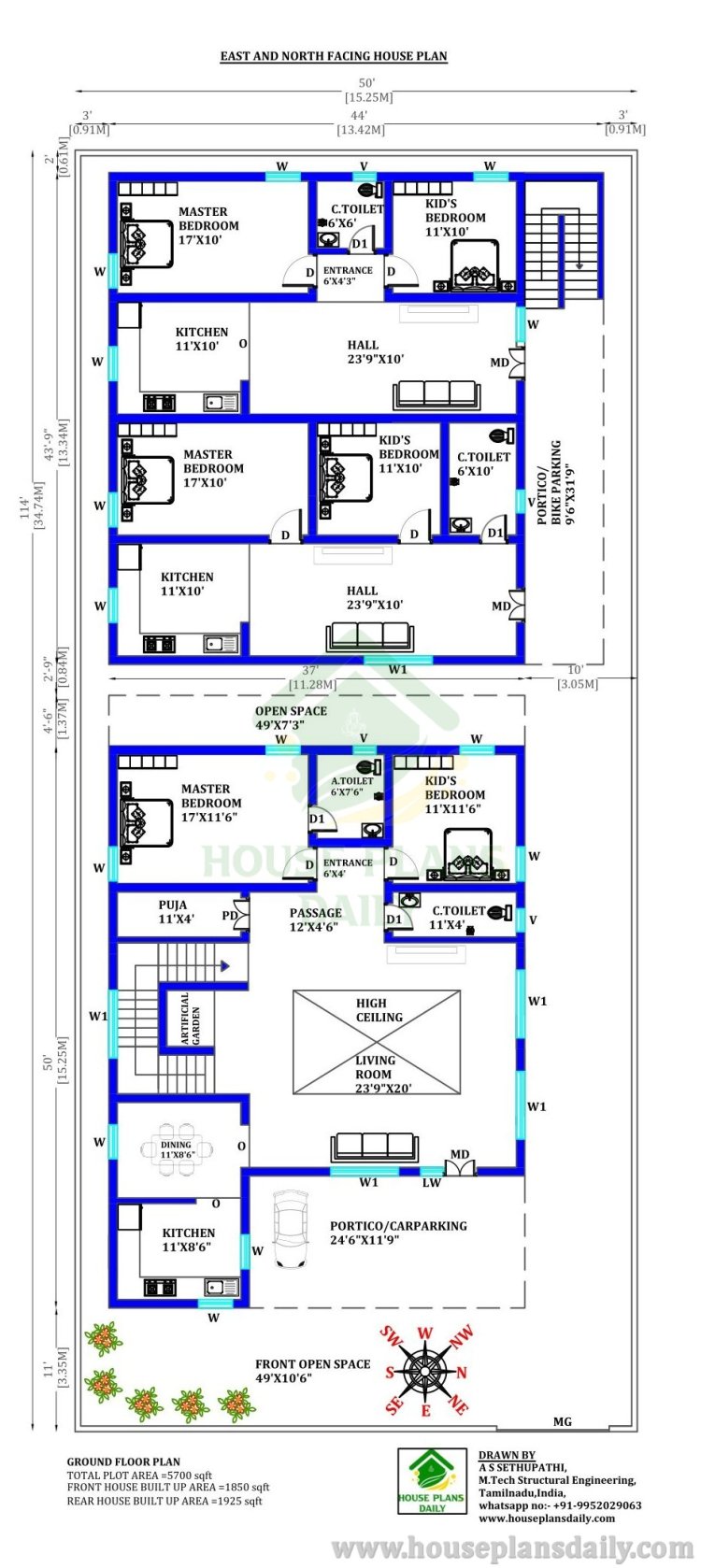

High ceiling living room and house plan ground floor layouts
High ceiling living room and house plan ground floor layouts are given in the above image. This is east facing house plan. On this floor plan, duplex house, and two rent houses are available. On this duplex house plan, the living room, dining area, kitchen, master bedroom with an attached toilet, kid’s bedroom, common toilet, puja room, passage, and car parking is available.
In this 5 bedroom house, the dimension of the living area is 23’9”x20’. The dimension of the kitchen is 11’x8’6”. The dimension of the dining area is 11’x8’6”. The dimension of the master bedroom is 17’x11’6”. The dimension of the master bedroom’s attached toilet is 6’x7’6”. The dimension of the kid’s bedroom is 11’x11’6”. The dimension of the common toilet is 11’x4’. The dimension of the portico is 24’6”x11’9”. The dimension of the puja room is 11’x4’.
In this modern duplex plan, the living room is provided in the east direction. The kitchen is provided in the southeast corner. The dimension of the dining area is provided in the south direction. The master bedroom is provided in the southwest corner direction. The master bedroom’s attached toilet direction is west. The kid’s bedroom is provided in the northwest corner direction. The common toilet is provided in the north direction. The sit-out is provided on the northeast side.
In the rear house, two houses are available. Each house consists of the living room, kitchen, master bedroom, kid’s bedroom, and common toilet is available. These houses are given in the north direction.
Plan of Duplex House | High Ceiling House

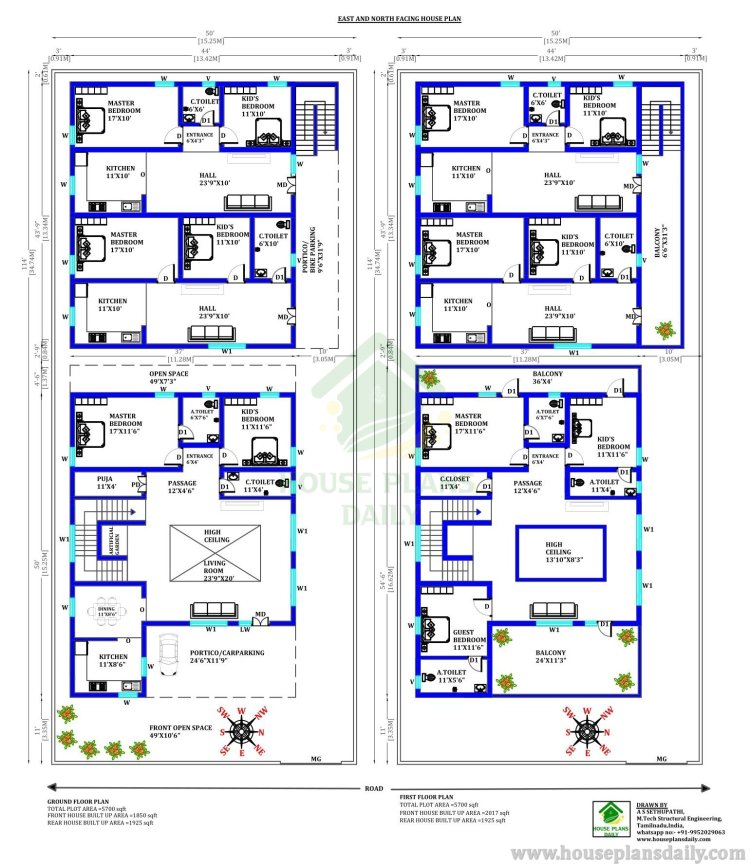

High ceiling house first floor layout is given in the above image. On this first floor plan, duplex house, and two rent houses are available. On this duplex house plan, guest room with the attached toilet, passage, entrance area, master bedroom with an attached toilet, kid’s bedroom, common toilet, puja room, passage, and balconies are available.
In this house plan with 2 bedroom, the dimension of the high ceiling area is 13’10”x8’3”. The dimension of the guest room is 11’x11’6”, and its attached toilet is 11’x8’6”. The dimension of the master bedroom is 17’x11’6”. The dimension of the master bedroom’s attached toilet is 6’x7’6”. The dimension of the kid’s bedroom is 11’x11’6”, and its attached toilet is 11’x4’. The dimension of the passage is 12’x4’6”. The dimension of the cloth closet is 11’x4’. The dimension of the balcony is 24’x11’3”.
In this northeast house, the living room is provided in the east direction. The kitchen is provided in the southeast corner. The dimension of the dining area is provided in the south direction. The master bedroom is provided in the southwest corner direction. The master bedroom’s attached toilet direction is west. The kid’s bedroom is provided in the northwest corner direction. The common toilet is provided in the north direction. The sit-out is provided on the northeast side.
In this first floor rear house, two houses are available. The rear house built-up area is 1925 sqft. Each house consists of the living room, kitchen, master bedroom, kid’s bedroom, balcony, and common toilet is available. These houses are given in the north direction.
Refer to These Articles

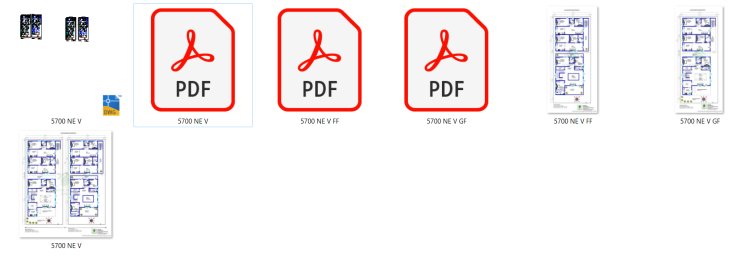

Download the High Ceiling House Plan PDF and DWG Files
high ceiling house plan
Download the high ceiling house plan pdf & dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com)
