3 Bedroom House Plan | Duplex House Plan

West face house plans as per vastu shastra are given in this article. This is a 3 bedroom house plan. On this duplex house plan, four bedrooms are available. On the ground floor, one kitchen is available. On the first floor, dry kitchen cum dining area is available. The total plot area is 2400sqft. The constructed area of the ground floor and first floors are 1642sqft, and 1654sqft respectively.

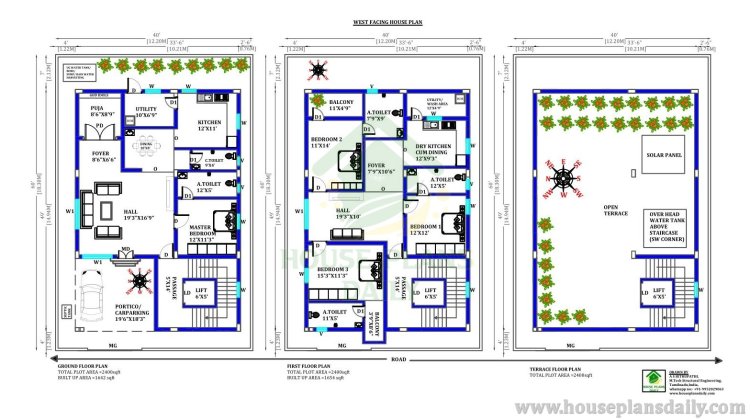

 West face house plans as per vastu shastra

West Face House Plans Per Vastu

duplex house plan

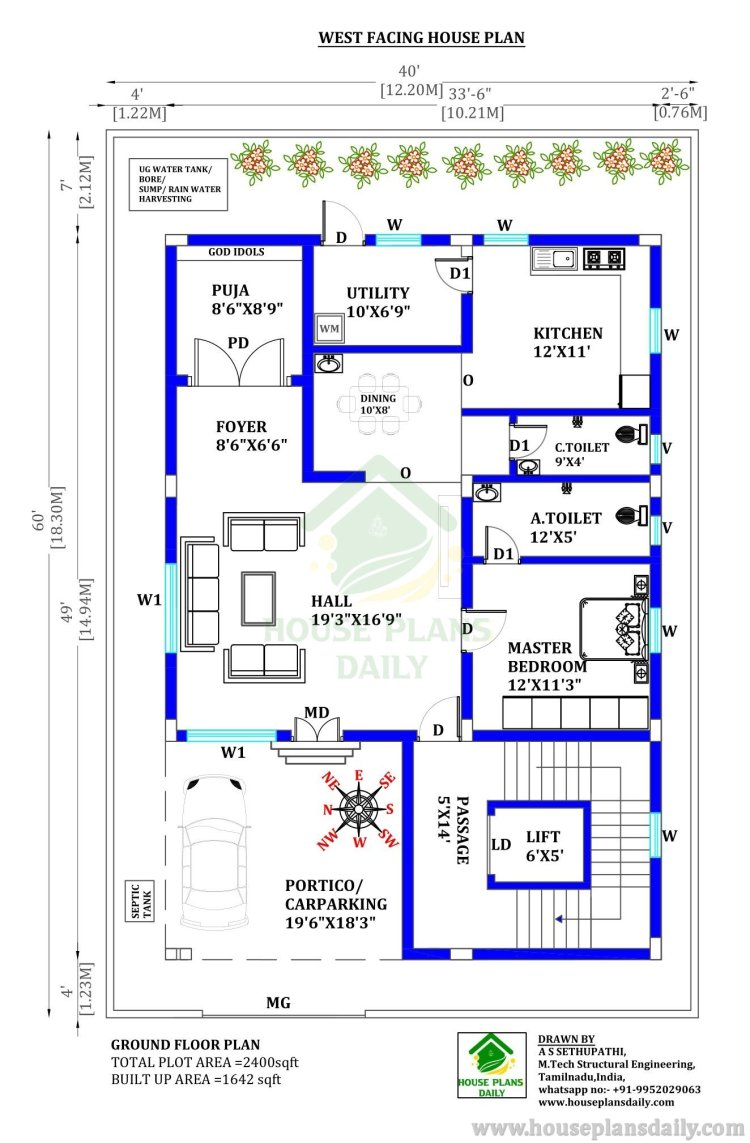

West face house plan as per vastu ground floor layout is given in this image. On this ground floor, the living room, kitchen, dining area, master bedroom with the attached toilet, puja room, foyer, common toilet, lift, and car parking or portico is available.

In this west facing vastu house plan, the dimension of the living room is 19’3”x16’9”. The dimension of the kitchen is 12’x11’. The dimension of the foyer is 8’6”x6’6”. The dimension of the master bedroom is 12’x11’3”. The dimension of the common bathroom is 9’x4’. The dimension of the car parking or portico is 19’6”x18’3”. The dimension of the puja room is 8’6”x8’9”. The dimension of the utility area is 10’x6’9”.  The dimension of the passage is 5’x14’.

On this 2400 sqft house plan, the living room area is provided in the west direction. The kitchen cum dining area is provided in the southeast corner. The master bedroom is provided in the southwest corner. The common bathroom is provided in the direction of the south. The kid’s bedroom is provided in the northeast direction. The dimension of the guest room is 12’x12’, and its attached toilet is 12’x5’.  The dimension of the passage is 5’x14’.  The dimension of the lift size is 6’x5’. The dimension of the foyer is 7’9”x10’6”.

2 Floor House Design | Double Storey House Design

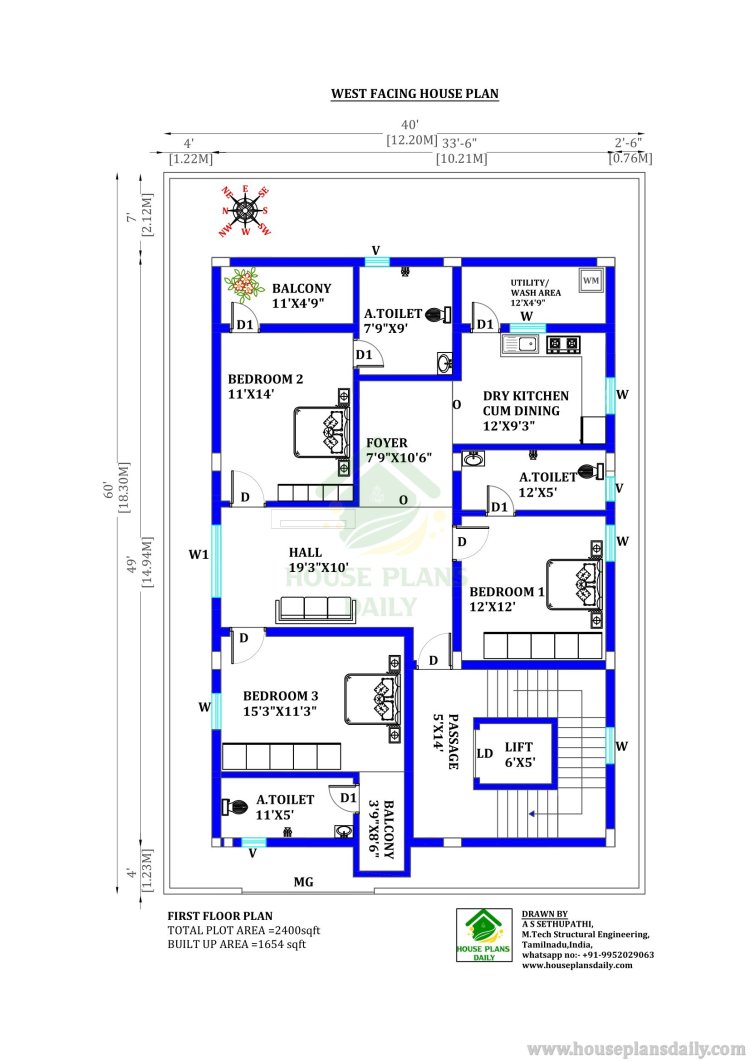

Double storey house design first floor

Double storey house design first floor is given in this image. On this firstfloor, the living room, dry kitchen cum dining area, utility area, master bedroom with the attached toilet, kid’s bedroom with the attached toilet, guest room with the attached toilet,  puja room, foyer, lift, and balconies are available.

In this 2 floor house plan, the dimension of the living room is 19’3”x10’. The dimension of the kitchen cum dining area is 12’x9’3”. The dimension of the master bedroom is 15’3”x11’3”. The dimension of the master bedroom’s attached toilet is 3’9”x8’6”. The dimension of the wash area is 12’x4’9”. The dimension of the kid’s bedroom is 11’x14’, and its attached toilet is 7’9”x9’.

On this west facing 3 bhk house vastu plan, the living room area is provided in the west direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the southwest corner. The common bathroom is provided in the direction of the south. The dining and utility area is provided in the east direction. The dimension of the puja room is provided in the northeast corner. The portico or car parking is provided in the northwest corner.

west facing 3 bhk house vastu plan

Refer to These Articles

·         60x60 House Plan | 3 BHK House | 2 Bedroom Home Plan

·         Home Interior Designs | Interior Design 2bhk

·         Modern Design for House with Interiors | Front Elevation Design

·         60x60 House Plan | Modern Home Floor Plan | 3bhk West Facing House Plan

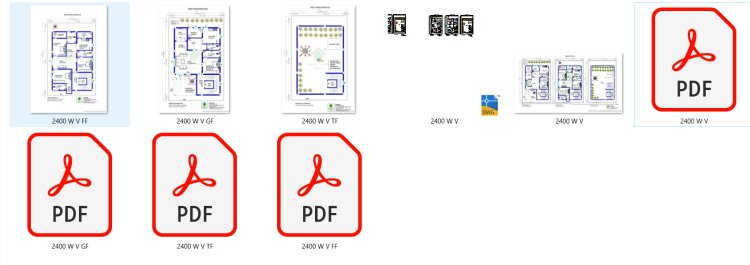

Download the west facing house plan as per vastu shastra pdf and dwg files

west facing house plan as per vastu shasatra pdf

Download the west facing house plan as per vastu shasatra pdf &dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com).
