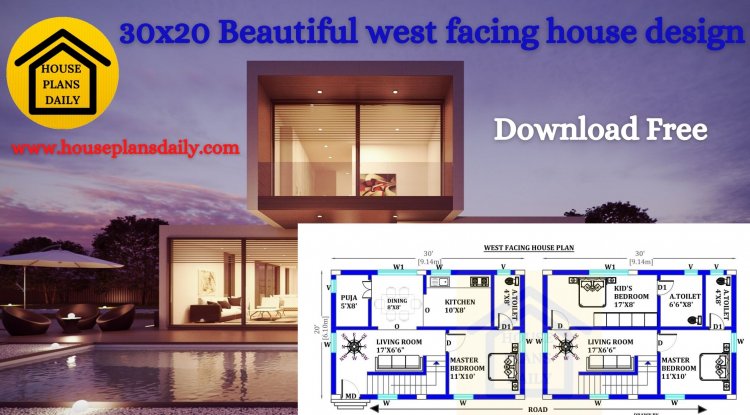

30x20 West facing House Design

30x20  West facing House Design

30x20 Ground floor west facing house plans

30x20 Ground floor west facing house plans

On the ground floor of the west facing plan as per vastu, the kitchen, master bedroom with the attached toilet, living hall, puja room, and dining area are available.  Each dimension is given in the feet and inches.  This ground floor west side facing house plan is given with furniture details.

The kitchen is placed in the direction of the southeast side. The master bedroom is placed in the direction of the southwest corner.  The living room is placed in the direction of the northwest corner. The dining area is placed in the direction of the east. The puja room is provided in the direction of the northeast corner.

The dimension of the kitchen is 10’ x 8’. The dimension of the master bedroom is 11’ x 10’. The master bedroom attached bathroom size is 4’ x 8’.  The dimension of the living room is 17’ x 6’6”.  The dimension of the puja room is 5’ x 8’. The dimension of the dining area is 8’ x 8’.

30x20 First floor west facing house designs

30x20 first floor west facing house plans

On the first floor of the west facing small house plan, the kid’s bedroom with an attached toilet, living room, and master bedroom with an attached bathroom is available.  All dimensions are given in feet and inches.  This first-floor plan is given with furniture details.

On the first floor of the west house vastu plan, the kid’s room is placed in the direction of the northeast corner. The kid’s attached bathroom is provided in the direction of the east.  The master bedroom is placed in the direction of the southwest corner.  And also, the master bedroom’s toilet is provided in the direction of the southeast corner.  The living room is provided in the direction of the northwest corner.

The dimension of the master bedroom is 11’ x 10’. The dimension of the kid’s room is 17’ x 8’. The dimension of the master bedroom’s toilet is 4’ x 8’. The kid’s attached bathroom size is 6’6”x 8’.  The dimension of the living room is 17’ x 6’6”.  The dimension of the living room is 17’ x 6’6”.

Download the west facing house plan AutoCAD 2D DWG drawing files for free

Download the west facing house plan AutoCAD 2D DWG drawing files for free

This west facing house design furniture locations are given as per vastu shastra. Most people believe that vastu shastra is good for the construction of new houses.

The above 3bhk west-facing house plan is very simple and compact for people who searching for houses under 600 sq ft.  According to the Vastu, we have added more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 house plans, G+ 2 house plans, small house plans, and 4bhk house plans are available on our website.  Thank you so much for visiting our website and downloading the CAD drawings and PDF files.
