House plan with elevation – Small house floor plan and house design front elevation are given in this article. This is a single floor house plan. The length and breadth of the 1 bhk house plan are 25’ and 27’ respectively. This kind of house plan is suitable for a small family. The total built-up area is 675 sqft.
This kind of article is useful to people who are searching for floor plans like House Plan with Elevation, House Design Front Elevation, Small House Floor Plan, normal house front elevation designs, house plan and elevation, elevation plan with dimensions, 1bhk house plan, 1 bedroom house plan, 1 bhk house plan 600 sq ft, one bedroom house design ideas, house elevation design single floor, village normal house front elevation designs, and simple home design.
House Plan with Elevation
House Plan with Elevation | Small House Floor Plan
Small House Floor Plan

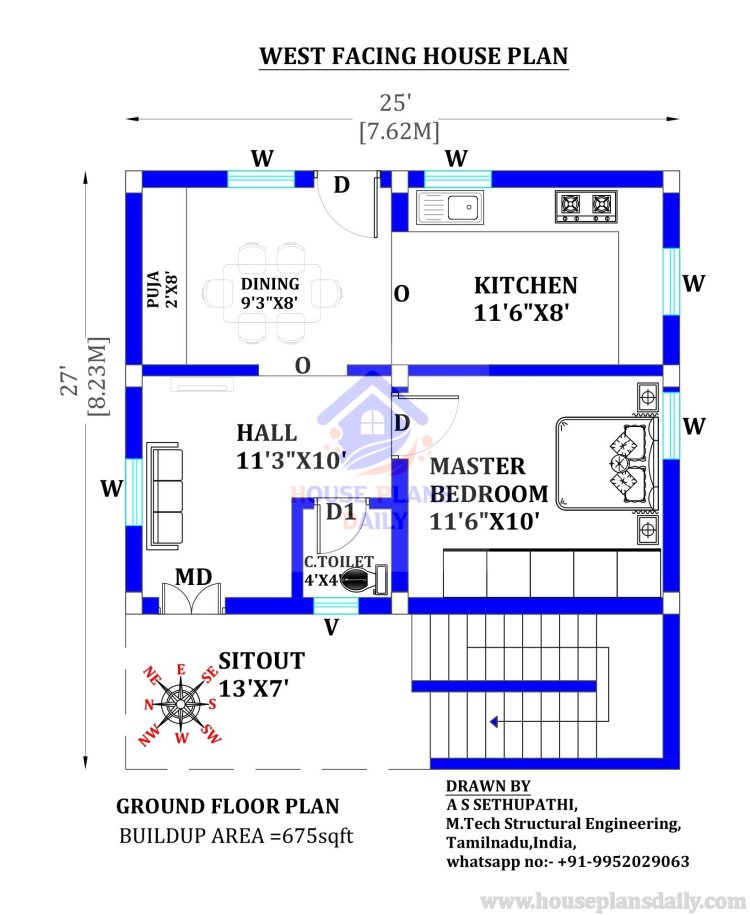

This is a small house floor plan. In this house plan with elevation drawing, one bedroom is available. The total built-up area of the 1bhk house plan is 675 sqft. On this one bedroom house plan, the living room, kitchen, dining area, puja room, master bedroom, common toilet, and sit-out is available. The secondary door is provided on the backside of the dining area.
In this simple house design, the dimension of the living room is 11’3”x10’. The dimension of the kitchen is 11’6”x8’. The dimension of the dining area is 9’3”x8’. The dimension of the puja room is 2’x8’. The dimension of the master bedroom is 11’6”x10’. The dimension of the common bathroom is 4’x4’. The dimension of the sit-out area is 13’x7’.
The dining area is provided in the northeast direction. The kitchen is provided in the southeast corner. The puja room is provided in the north direction. The living room is provided in the west direction. The master bedroom is provided in the south direction. The common toilet is provided in the west direction. The sit-out is provided in the northwest direction.
Refer to These Articles
- 30x40 West Facing Vastu House Design
- Vastu West Facing House Plan | Duplex House Design
- House Designs 3 Bedroom | 1800 Sqft West Facing House
- 1BHK Ground Floor Plan | West Facing Single Bedroom House
- 3BHK Duplex House | House Plan with Car Parking
- Ghar Ka Naksha | Vastu West Facing House Plan
House Design Front Elevation | House Plan and Elevation
House Design Front Elevation

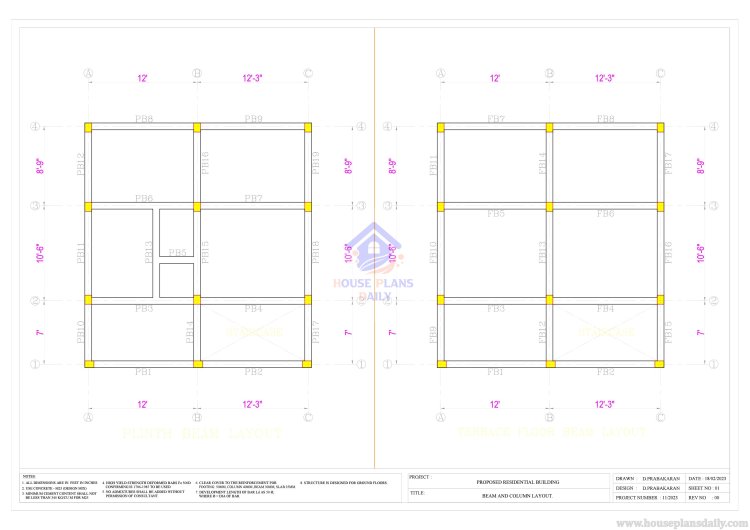

Column and beam layout of simple home design

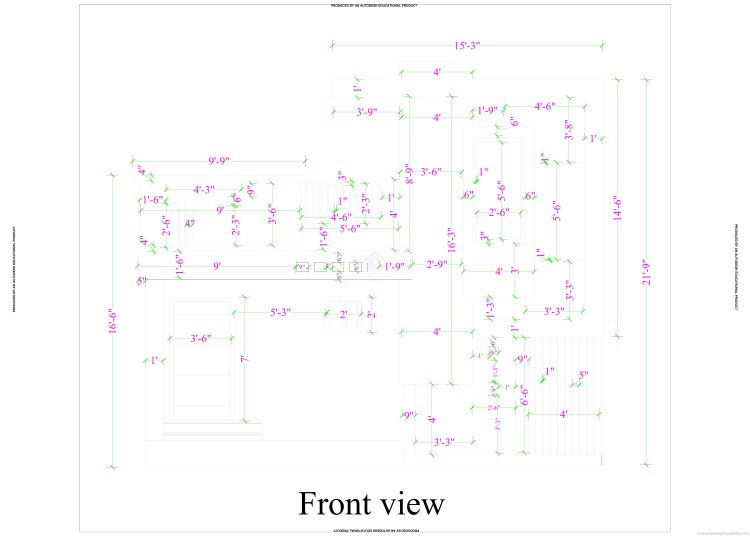

elevation plan with dimensions

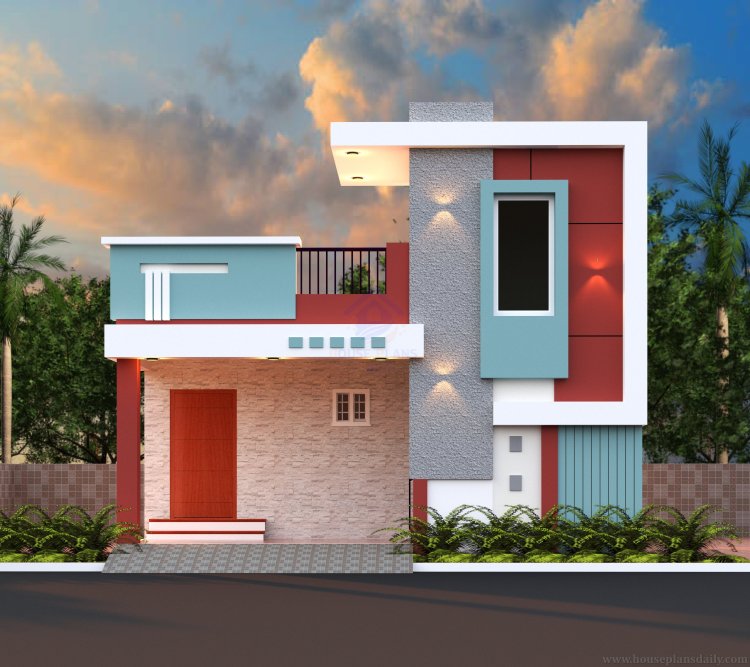

House plan and elevation - The above image shows the house front elevation design. The design features a color combination of red, sky blue, white, ash, and sandal color. There is a single window is provided in the headroom, and a vertical lined design is provided in the lower right corner.
These house front elevation designs are standard design that has been customized to meet the specific requirements of the client. The parapet wall is constructed using a combination of brickwork and stainless steel materials. It features a light fixture for illumination. Additionally, an ash-colored tile is installed at a height of 2 feet from the ground level to the top of the wall.
An elevation plan with dimensions is mentioned. From this article, you will get ideas for 1 bhk house plan 600 sq ft, village normal house front elevation designs, house elevation design single floor, etc., And also, beam layout, column layout, and elevation measurement details are given.
Download the house plans and elevation pdf and dwg files
1 bhk house plan 600 sq ft pdf file
Download the house plans and elevation pdf and dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article.
