East Facing House Plan As Per Vastu is shown in this article. This house Design includes the Ground and first floors. This House is planned as per Vastu shastra.
East Facing House Plan As Per Vastu

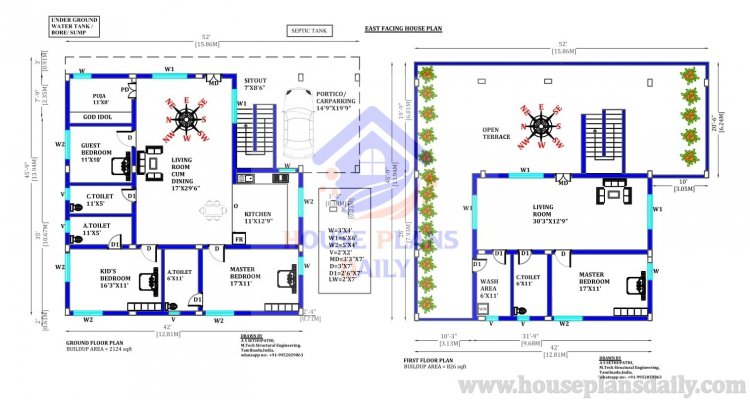

The below-shown image is the 3bhk house ground and the first floor of an east-facing house. The built-up area of the ground, first, and the second floor is 2124 Sqft and 826 Sqft respectively. The ground floor includes a hall or living area cum dining area, a master bedroom with an attached toilet, a kids' bedroom with an attached toilet, a guest bedroom, a kitchen, a puja room, a common toilet, and a portico whereas the first floor includes a living area, a master bedroom, a common toilet, a wash area, and an open terrace.
dream home house plans, new home building plans, Barndominium, barndominium house plans, barndominium floor plans, barndominium plans, metal building house plans, house Design, East Facing Home Plan with Elevation, house plans daily, normal house front elevation design, elevation design, list of structural drawings, east facing 1bhk house plan,20x50 house plan east facing 3d,15x30 house plan east facing
east facing house vastu plan with pooja room

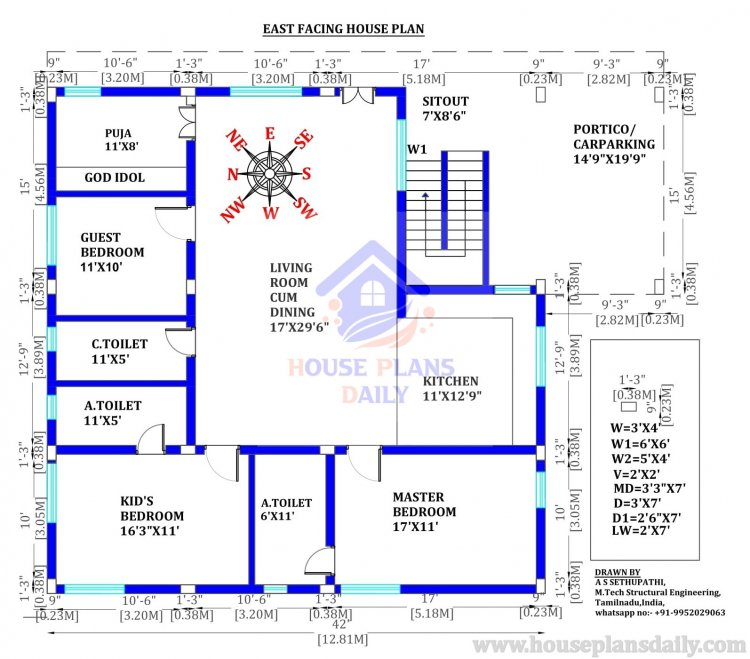

3bhk East Facing House Plan As Per Vastu-Ground Floor
east facing house design

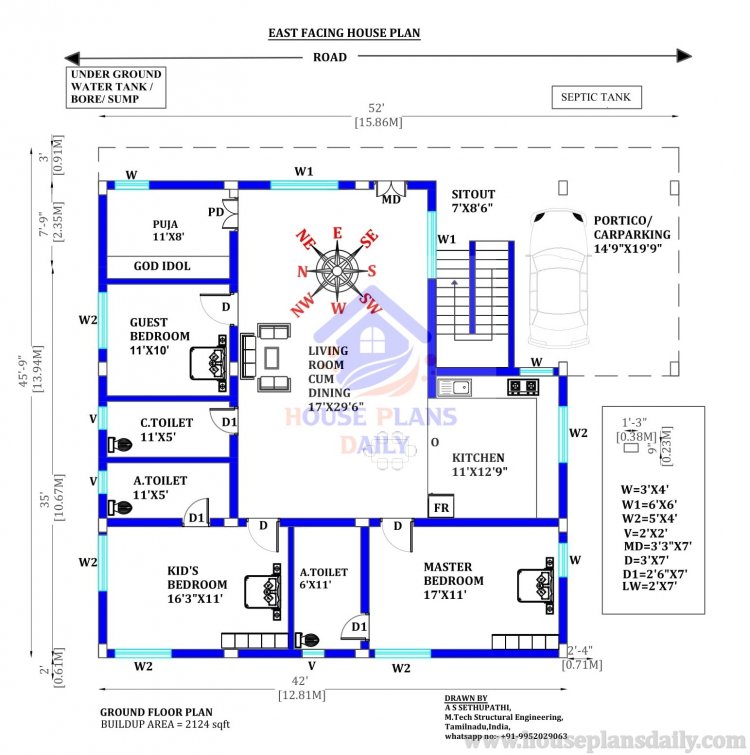

The above image is the ground floor of an east-facing home plan. It includes a hall or living area cum dining area, a master bedroom with an attached toilet, a kids' bedroom with an attached toilet, a guest bedroom, a kitchen, a puja room, a common toilet, and a portico. The total built-up area of this ground floor is 2124 Sqft respectively. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for clear reference.
The Hall or the living area cum dining area is 17x29.6 feet in size with the sofa placement facing west. The master bedroom is 17x11 feet in size with a bed placement facing north with an attached toilet of 6x11 feet. The kid’s bedroom is 16.3x11 feet in size. The guest bedroom is 11x10 feet in size. The kitchen is 11x12.9 feet in size. The common toilet is 11x5 feet in size and the puja room is 11x8 feet in size.
sample floor plans for houses,blueprints plans,creating house plans,sample house plans,simple house layouts,dream house floor plans,home plan layout,eplan house plans,modern houses to build,home design blueprints,house designs and floor plans,house plans with prices,dream home plans,home layouts ideas,house plan websites,nice houses plans,modern homes blueprints,house plans styles,simple small house plans,search house plans,small house house plans,house floor plans with dimensions
East Facing House Vastu Plan 3 Bedroom-First Floor
east facing vastu plan

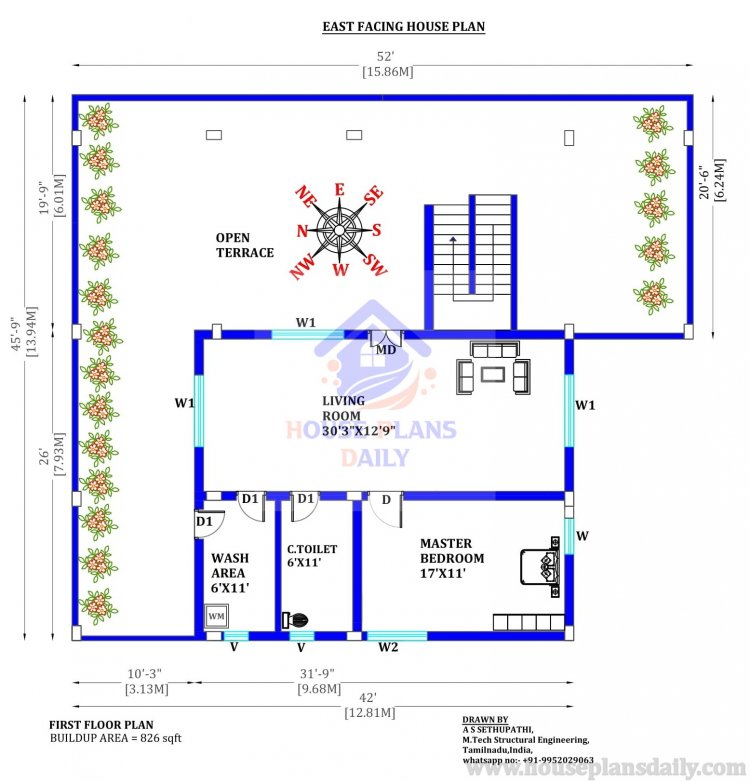

The above image is the first floor of a modern house design low budget. It includes a hall or living room, a master bedroom, a wash area, a common toilet, and an open terrace. The total built-up area of this first floor is 826 Sqft respectively. This is a two-storey house design where a staircase is provided outside the house to access the first floor. All the dimensions of each room are mentioned on the plan.
The Hall or the living area is 30.3x12.9 feet in size with the sofa placement facing west. The master bedroom is 17x11 feet in size with bed placement facing north. A common toilet of size 6x11 feet is provided. A wash area of size 5x10 feet is also provided.
Modern Elevation Design East Facing
east facing house elevation double floor
The above-shown image is a front and side elevation view of a kerala style house elevation design. This image elaborates on the elevation design which consists of 3 floors. The ground floor consists of a single house with a staircase provided inside the house to access the first floor and second floors. The compound wall is also provided on all sides of the house with the main gate at the front for users to move out.
The first floor consists of a house with a balcony made of glass material railings to give an elegant elevation design. Light and dark color paints and materials are used to highlight the elevation design. Long windows are provided in order to get enough light inside the house. The top floor is kept open as terrace with parapet wall.
Refer to these articles
- North Facing Home Design | Ghar Ka Naksha Vastu Ke Anusar
- House Plan with Car Parking | 40x60 House Plans | Modern Home
- Modern Interior Bedroom | Bedroom Interior Design | Modern Bedrooms Ideas
- East Facing House Plan With Vastu | 60x60 Home Design
- Dakshin Mukhi Ghar Ka Naksha | 30x60 Home Design As Per Vastu
Set of Structural Drawings
house structural drawings
set of structural drawings
beam-column layout
structural drawing for east facing house

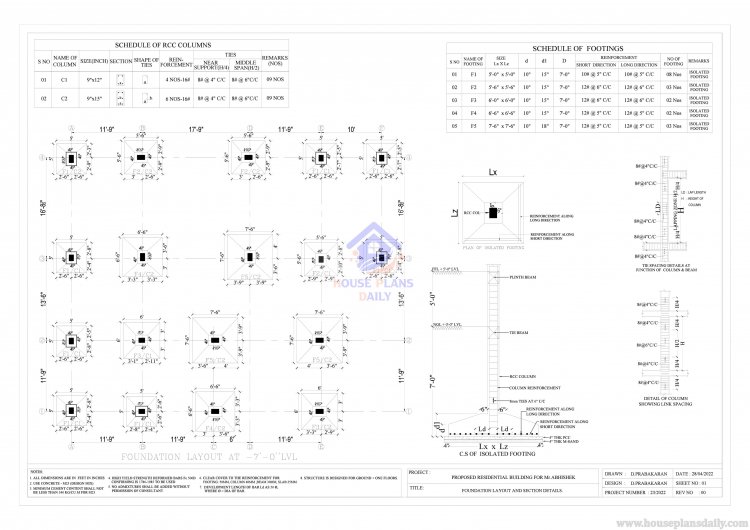

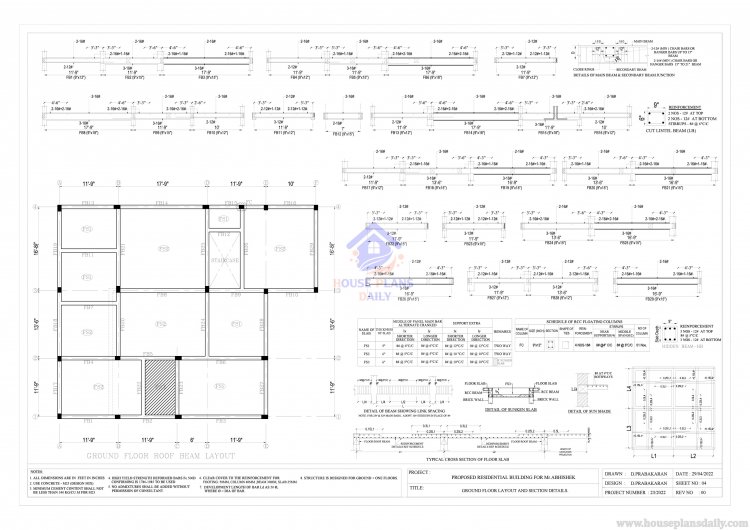

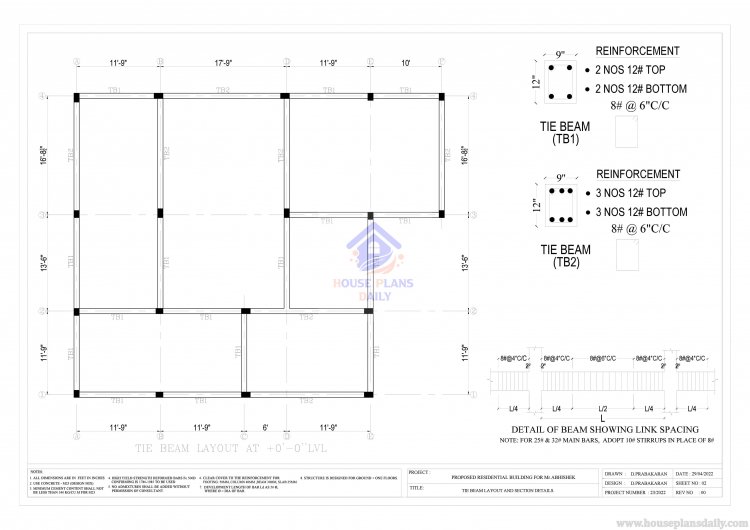

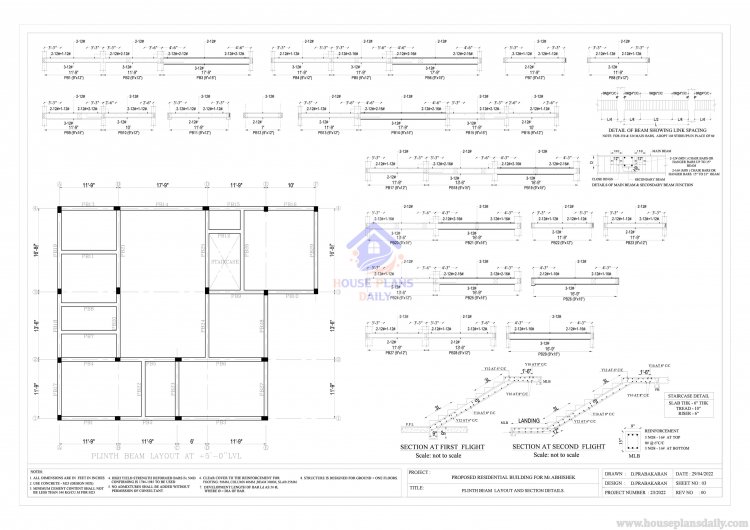

The above-shown images elaborate the structural drawings of a 2-storey house. All the images explain the details of structural depth, width, steel requirements, and dimensions of all the Reinforced cement concrete elements such as slab, beam, column, staircase, and footing. Isolated footing and its structural details such as reinforcement spacing and dimension are shown in the last image.
georgian style home,georgian style home plans,federal style house plans,regency house plans,georgian townhouse floor plan,Modern Farmhouse design,american house plans modern farmhouse,2500 sq ft contemporary house plans,contemporary house plans with walkout basement,contemporary house plans small,contemporary house plans single story,small contemporary house plans,ultra modern house floor plans,luxury contemporary house plans,front house design,Greek Revival style,Ranch homes,ranch houses,ranch house
structural drawing for house

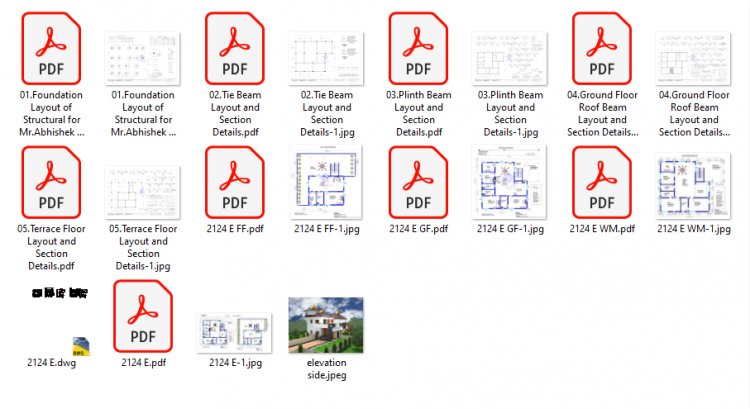

Download the house plan pdf and dwg files for free
house designs pdf
Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this ghar ka naksha for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
