1600 sqft house electrical wire diagram and plumbing drawing is given in this article. This is a 4 bedroom house plan Indian style.

HOUSE DESIGN WITH ELEVATION Sep 17, 2024 0 3609 Add to Reading List

1600 Sqft House | House Electrical Wire Diagram | Plumbing Drawing

1600 Sqft House | House Electrical Wire Diagram

1600 sqft house electrical wire diagram and plumbing drawing are given in this article. This is a 4 bedroom house plan Indian style. The length and breadth of the vastu homes are 55’ and 38’ respectively. This is an east facing house plan as per vastu shastra.

This kind of article is useful to people who are searching for floor plans like 1600 sqft house plan, house electrical wire diagram, plumbing drawing, 4bhk duplex house plan, house electrical drawing, structural design patterns, plumbing diagram for house, plumbing layout plan dwg, 4 bedroom house plan, 4 bedroom house plan indian style, vastu homes, east facing house plan as per vastu, vastu of home, and house vastu east facing, house design.

1600 Sqft House

1600 Sqft House | 4BHK Duplex House Plan

vastu homes

This is a 4bhk duplex house plan which includes, house electrical drawing, structural design patterns, and plumbing layout plan dwg. This is 1600 sqft house plan. On this 4 bedroom house plan, the living room cum dining area, kitchen, puja room, master bedroom with an attached toilet, common toilet, kid’s room, guest room, foyer, wash area, car parking, or portico is available.

In this house vastu east facing, the dimension of the living room cum dining area is 17’6”x21’. The dimension of the kitchen is 11’x8’6”. The dimension of the foyer is 11’6”x5’. The dimension of the puja room is 11’x6’6”. The dimension of the master bedroom is 17’x10’, and the attached bathroom is 6’x10’. The dimension of the common bathroom is 11’x5’. The dimension of the kid’s bedroom is 16’3”x10’. The dimension of the guest room is 11’x8’6”. The dimension of the car parking or portico is 10’x19’6”.

The living room cum dining area is provided in the east direction. The kitchen is provided in the southeast corner. The puja room is provided in the northeast direction. The living room is provided in the west direction. The master bedroom is provided in the southwest direction. The common toilet is provided in the west direction. The kid’s bedroom is provided in the northwest direction. The guest room is provided in the north direction.

Refer to These Articles

1600 Sqft House Plan First Floor & Second Floor

In the above image, 1600 Sqft house plan first floor & second floors are given. On this first floor, the living room, foyer, wash area, master bedroom with an attached toilet, and open terrace is available. On this second floor, an open terrace and water tank are available. The total built-up area of this first floor is 577 sqft.

The dimension of the living room is 17’9”x11’. The dimension of the foyer area is 11’6”x4’. The dimension of the master bedroom is 17’x10’. The dimension of the master bedroom’s attached toilet is 6’x10’. The dimension of the wash area is 5’x10’. The rest of the place is provided for the open terrace. The dimension of the water tank is 17’6”x10’.

The living room is provided in the east direction. The foyer is provided in the southeast corner. The wash area is provided in the northwest direction. The master bedroom is provided in the southwest corner direction. The master bedroom’s attached toilet is provided in the north direction.

4bhk duplex house plan

4 bedroom house plan indian style

Normal House Elevation

normal house elevation

elevation drawing

Best elevation drawing

simple elevation drawing

The image above shows a simple and normal house elevation drawing. It is a two-story residential building with a front ceiling that includes spotlights, adding an elegant touch to the house's appearance.

House Electrical Wire Diagram | Plumbing Drawing

House Electrical Wire Diagram

Plumbing Drawing

structural design patterns

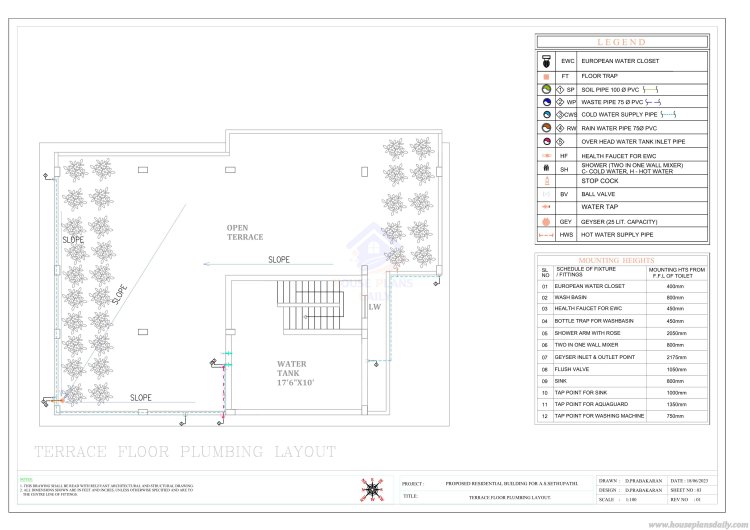

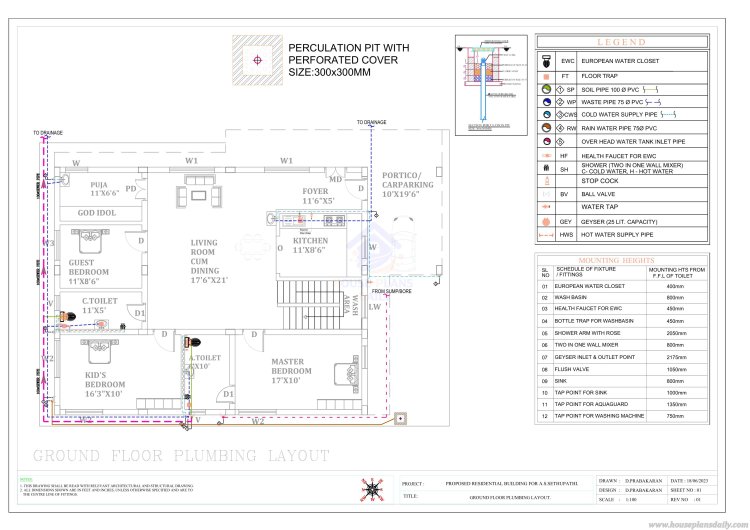

Here, a house electrical wire diagram is provided for each floor. Plumbing drawing layouts are provided to get a clear view of the pipeline. And also, beam layout, roof layout, foundation detail drawing, and other details are provided in the file.

Download The 1600 Sqft House Plan and Plumbing Drawing Pdf and Dwg Files

1600 sqft house plans file

Download the 1600 sqft house plan, house electrical wire diagram, and plumbing drawing dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com)
