House with designs – Southeast house floor plan is given in this article. In this floor plan, two houses are available. For more articles, check out our website House Plans Daily (www.houseplansdaily.com).
Meera
Sep 17, 2024
House with Designs | SouthEast House

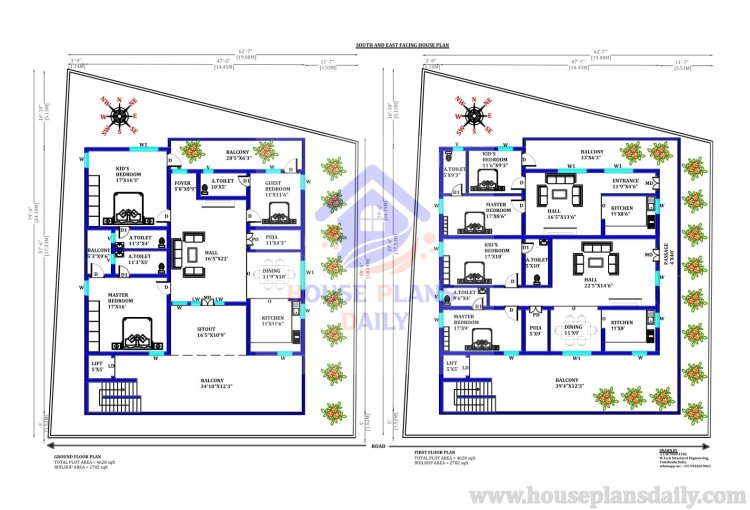

House with designs – Southeast house floor plan is given in this article. In this floor plan, two houses are available. On the ground floor, 3 bedrooms are available. On the first floor, two houses are available with 2 bedrooms. The length and breadth of the house plans are 62’7” and 79’4” respectively.
SouthEast House
House Floor Plans | House Designs | House Plan PDF Books
SouthEast House | 3 Bedroom House Plan
3 Bedroom House Plan

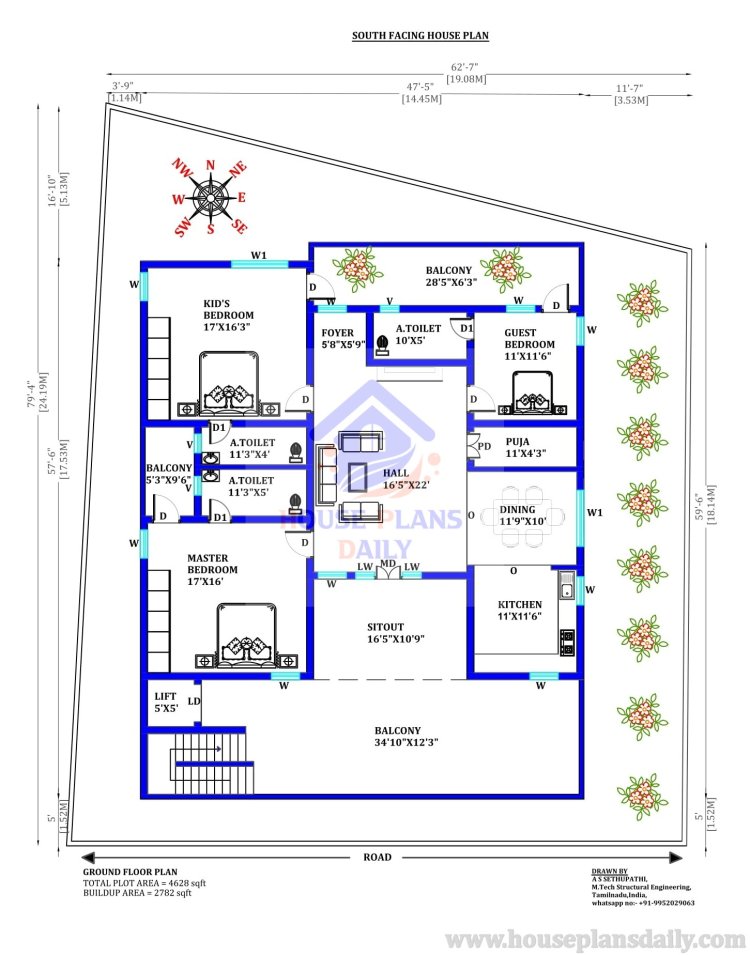

Southeast house ground floor layouts are given in the above image. This is a south facing house plan. In this southeast house, 3 bedrooms are available. The total plot area is 4628 sqft. The total constructed area of this ground floor plan is 2782 sqt. The living room, dining area, kitchen, foyer, children’s bedroom with the attached toilet & balcony, master bedroom with the attached toilet & dressing area, guest room with the attached toilet, puja room, sit-out, and balcony are available.
In this 3-bedroom house floor plan, the dimension of the living room is 16’5”x22’. The dimension of the kitchen is 11’x11’6” and the dining area is 11’9”x10’. The dimension of the foyer area is 5’8”x5’9”. The dimension of the puja room is 11’x4’3”. The dimension of the master bedroom is 17’x16’, the balcony size is 5’3”x9’6”, and the attached toilet size is 11’3”x5’. The dimension of the children’s bedroom is 17’x16’3”. The dimension of the balcony is 34’10”x12’3". The dimension of the sit-out is 16’5”x10’9”. The dimension of the guest room is 11’x11’6”.
The living room is provided in the south direction. The kitchen is provided in the southeast corner. The dining area is provided in the east direction. The master bedroom is provided in the west direction, and the balcony with an attached toilet is provided in the north direction. The children’s room is provided in the northwest direction. The sit-out is provided in the south direction. The foyer area is provided in the north direction. The balcony is provided in the south direction.
Refer to These Articles
Rental House

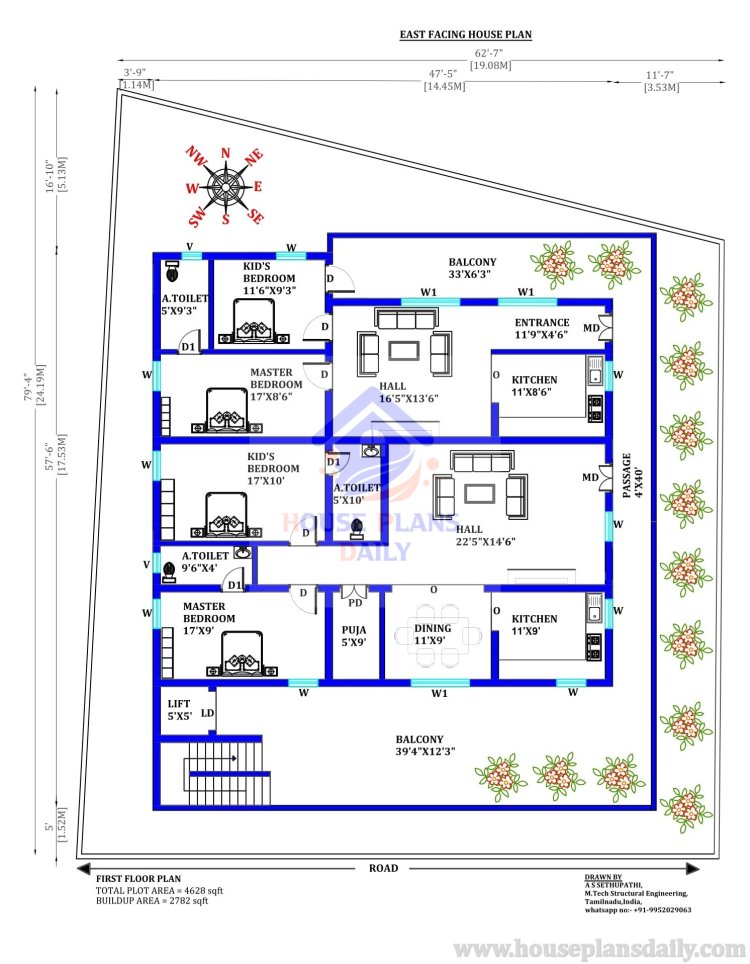

In the above image east facing rental house plan, first floor is given. In this floor plan, two houses are available with 2 bedrooms. In this first house, the living room, dining area, kitchen, master bedroom with the attached toilet, kid’s bedroom with the attached toilet, passage, and puja room are available. In the second house, the living room, kitchen, entrance room, master bedroom with the attached toilet, and kid’s bedroom with the balcony.
In this 2 bedroom house, the dimension of the living room is 22’5”x14’6”. The dimension of the kitchen is 11’x9’. The dimension of the dining area is 11’x9’. The dimension of the puja room is 5’x9’. The dimension of the master bedroom is 17’x9’, and the attached toilet size is 9’6”x4’. The dimension of the children’s bedroom is 17’x10’, and the attached toilet size is 5’x10’. The dimension of the balcony is 39’4”x12’3”. The dimension of the passage is 4’x40’.
In this east facing house plan, the living room is provided in the east direction. The kitchen is provided in the southeast corner. The dining area is provided in the south direction. The master bedroom is provided in the southwest direction, and attached toilets are provided in the south direction. The children’s room is provided in the south direction. The balcony is provided in the south direction.
In this second house, the living room, kitchen, entrance area, master bedroom with the attached toilet, kid’s bedroom with the attached balcony, and passage are available.
In this 2 bedroom house, the dimension of the living room is 16’5”x13’6”. The dimension of the kitchen is 11’x8’6”. The dimension of the master bedroom is 17’x8’6”, and the attached toilet size is 5’x9’3”. The dimension of the children’s bedroom is 11’6”x9’3”, and the attached balcony size is 33’x6’3”. The dimension of the entrance area is 11’9” x 4’6”.
The living room is provided in the east direction. The kitchen is provided in the east. The entrance area is provided in the east direction. The master bedroom is provided in the east direction, and the attached toilet is provided in the north direction. The kid’s bedroom is provided in the east direction with the balcony.
Download the Southeast house PDF and Dwg Files
south east plan pdf and dwg file
Download the southeast house pdf and drawing dwg files from our website. Thank you for spending your valuable time visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com)
Note:
House plans design related to these keywords like House with designs, southeast house, rental house, south east plan, rent house 3 bedroom, rent house 2 bed, 3 bedroom house plan, east face plan, 2 bedroom house, 3 bedroom house, east face house plans, 3 bedroom house floor plan, 3 bedroom house design plan, 2bhk house design, 3bhk house, house planning, planning house design, house plans design, house plan, and others can be obtained from this website.
Keywords: House with designs, southeast house, rental house, south east plan, rent house 3 bedroom, rent house 2 bed, 3 bedroom house plan, east face plan, 2 bedroom house, 3 bedroom house, east face house plans, 3 bedroom house floor plan, 3 bedroom house design plan, 2bhk house design, 3bhk house, house planning, planning house design, house plans design, house plan
