House plan electrical drawing is given in this article. This is a 2500 sq ft house plan. This article includes plumbing, electrical, 3d house plans, and structural drawings.
House Plan Electrical Drawing | House Plan PDF | 2500 sq ft house plan
House plan electrical drawing is given in this article. This is a 2500 sq ft house plan. This article includes plumbing, electrical, 3d house plans, and structural drawings. This is a single floor plan. The total plot area is 2592 sqft. The built-up area of the north house is 1237 sqft. On this north facing house vastu planwith pooja room, car parking, and bike parking is available.
3d house plans
Refer to These Articles
- 1000 Sqft House Design for Middle Class | 27x37 House Plan
- 30x40 East facing G1 Residential House Plan| as per vastu
- Free Home Plan | East Facing Home Design | Single Storey House
- House Plans As Per Vastu Shastra| Bulk Home Plan images
- Best 40x30 house plans | 40x30 Free south House Plans | 40x30 floor plan
- North Facing House Vastu Plan | 22x50 Ghar Ka Naksha
2500 Sq Ft House Plan – Ground Floor Plan
2500 sq ft house plan

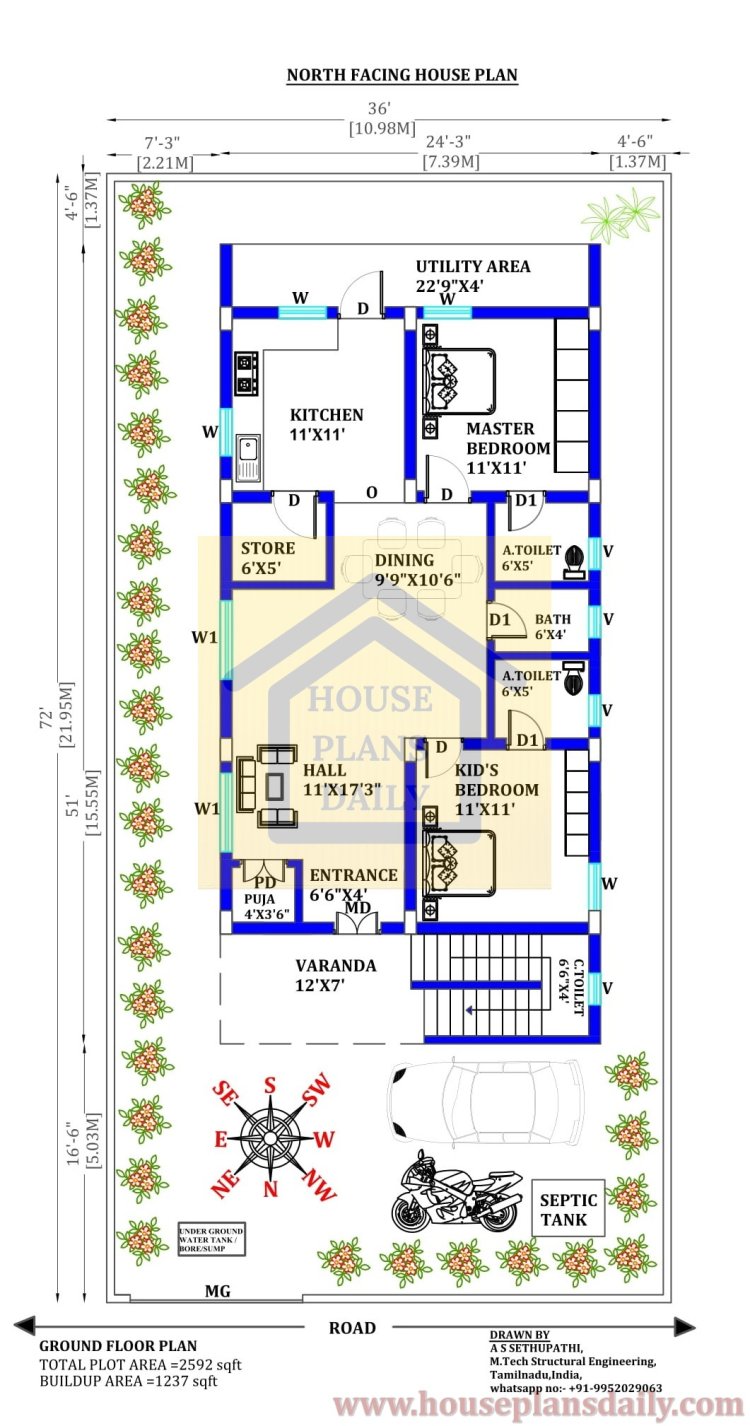

The above image is the ground floor of north facing house plan with vastu. The length and breadth of the floor plans are 36’ and 72’ respectively. This ground floor consists of the living room, kitchen, master bedroom with an attached toilet, utility room, store room, dining area, common bathroom, kid’s bedroom with an attached toilet, puja room, verandah, entrance area, and outside common bathroom.
On this 2500 sqft house plan, the living room is 11’x17’3” and placed in the north direction. The dining area size is 9’9” and it is placed in the south direction. The kitchen is 11’x11’, and placed in the southwest direction. The store room is 6’x5’, and placed in the east direction. The master bedroom is 11x11’ and its attached toilet size is 6’x5’ in the southwest corner. The kid’s bedroom is placed in the northwest corner.
The kid’s bedroom’s attached toilet is 6’x5’. A small entrance area is provided in the north direction from the main door, and the dimension is 6’6”x4’. The puja room is 4’x3’6” in the east direction. The common bathroom is placed in the west direction with a size of 6’x4’. The front veranda is 12’x7’ and placed in the northeast corner.
House Plan Electrical Drawing | House Plan PDF

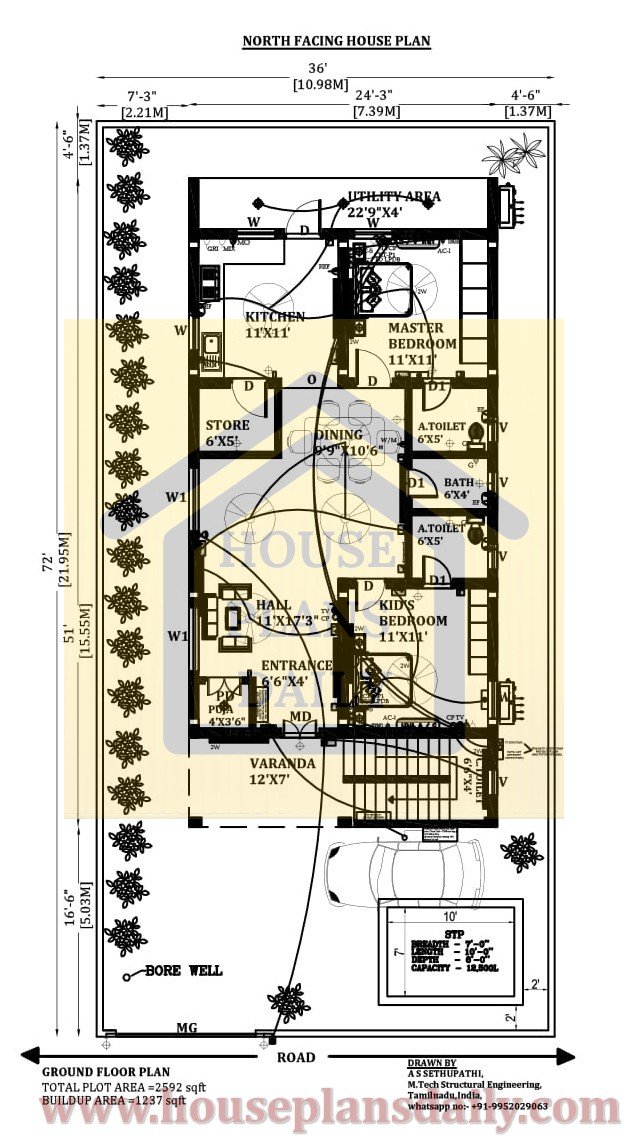

House Plan Electrical Drawing

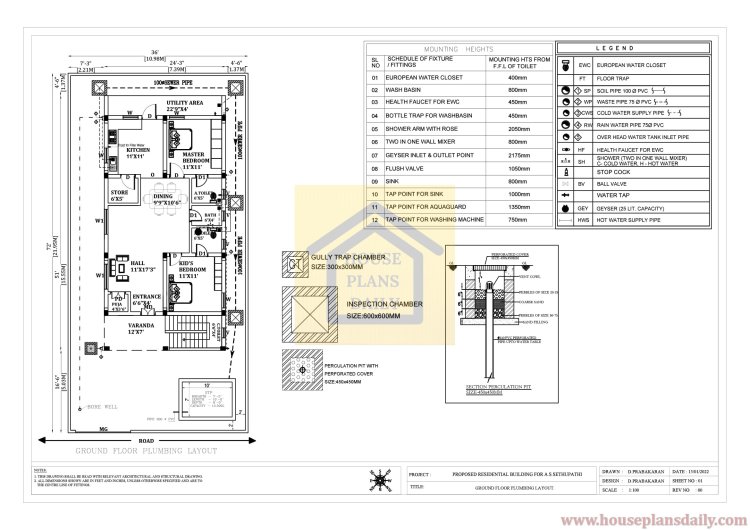

Plumbing floor plans
floor plans house foundation layout
Plinth layout
3d house plans
3d interior view
Interior models
In this north house article, house plan electrical drawing, structural detail drawings, 3d house plans, house plan pdf file, and plumbing drawings are provided. This is a north face house plan as per vastu. Each drawing is prepared by using Autocad software. The structural drawing is prepared by using stadd.pro software. We have prepared this kind of drawings as per the client’s requirements. For more detailed drawings check out our website www.houseplansdaily.com.

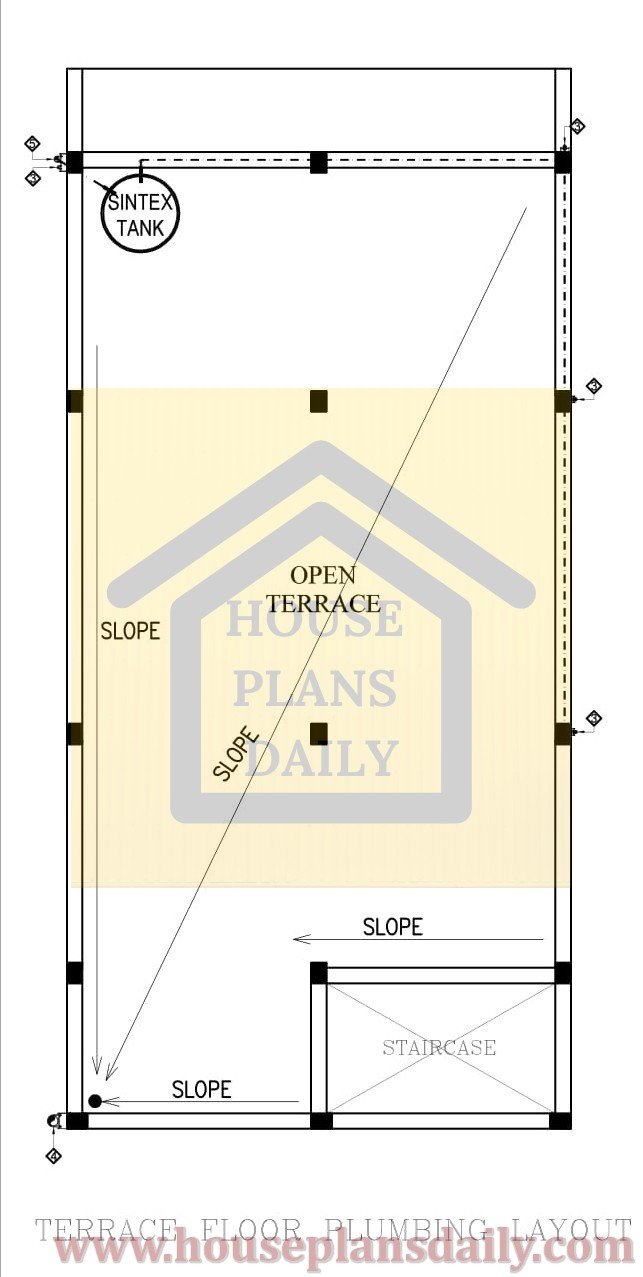

In the north side draft house, the plinth beam layout, foundation layout, plumbing and electrical combined, terrace floor layout, structural details, 3d interior view, and 3d elevation, and other details are available. The septic tank detail drawing is given in this pdf file. This kind of floor plan house is useful to people who are looking for house plans cum with plumbing, and electrical drawings.
On this vastu north facing house plan, the underground water tank, bore sump, and septic tanks are placed as per vastu shastra. The staircase is placed in the northwest corner. And also, in the living room area, the two biggest windows are provided to get more ventilation. The climbing direction of the staircase is east-west. For more customized house plan ideas, check out our website www.houseplansdaily.com.
Download the 2500 sqft house plan pdf and dwg files
House Plan PDF
Download the 2500 sqft house plan pdf and dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article.
