Northwest Facing House Plan
Northwest facing house plan
Northwest facing house plan is given in this article. This is a three story building. In this floor plan, three houses are available. Duplex house, 1bhk house, and 2bhk house is available. The length and breadth of the house plans are 35’ and 50’ respectively. For more house plan ideas, check out our website www.houseplansdaily.com.

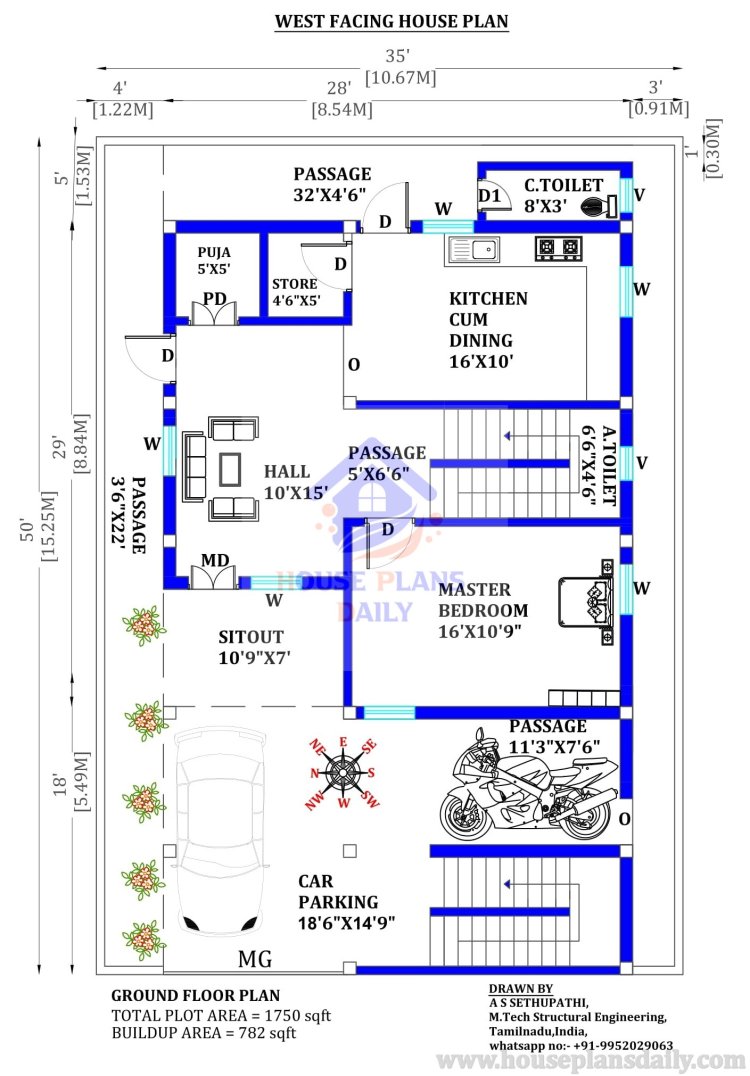

35’x50’ House Plan Ground Floor
35’x50’ house plan ground floor layout
35’x50’ house plan ground floor layout is given in the above image. This is a duplex house plan with 4 bedrooms. In this ground floor, the living room, kitchen cum dining area, puja room, store room, common toilet, passage, master bedroom with the attached toilet, and car parking is available. Another main door is provided to the north side passage from the living room. The staircase is provided in between the kitchen and master bedroom.
In this north and west facing house plan, the dimension of the living room is 10’x15’. The dimension of the kitchen cum dining area is 16’x10’. The dimension of the master bedroom is 16’x10’9”, and an attached toilet is 6’6”x4’6”. The dimension store room is 4’6”x5’. The dimension puja room is 5’x5’. The dimension of the sit-out is 10’9”x7’. The dimension of the car parking is 18’6”x14’9”.
The living room is placed in the west direction. The kitchen, dining area and common toilets are provided in the east direction. The master bedroom is placed in the south direction. The store room, and puja rooms are placed in the east direction. The passages are placed in the northeast direction. The sit-out area is placed in the west direction.
Duplex House Plan First Floor Layout
Duplex house plan first floor layout
Duplex house plan first floor layout is given in the above image. In this first floor, the living room, master bedroom with the attached toilet, kid’s bedroom with the attached toilet, guest room, common toilet, balconies, and passages are available. The staircase is provided in between the kid’s bedroom and common toilet.
In this west facing house design, the dimension of the living room is 10’x15’. The dimension of the master bedroom is 16’x10’, and an attached toilet is 6’6”x4’6”. The dimension of the kid’s bedroom is 11’6”x11’, and an attached bathroom is 8’x4’. The dimension of the guest room is 10’x10’. The dimension of the common toilet is 8’x3’.
The living room is placed in the west direction. The kid’s bedroom and attached toilets are provided in the east direction. The master bedroom is placed in the south direction. The guest room is placed in the east direction. The master bedroom is placed in the southwest direction. The balcony is placed in the west direction.
1BHK House | 2BHK House | Northwest House
1bhk house and 2 bhk house layout
The above image is 1bhk house and 2 bhk house layout. On the west facing house, the living room, kitchen cum dining hall, master bedroom, balcony, and common toilet is available. On the north face house, kitchen, living room, master bedroom with the attached toilet, kid’s bedroom, passage, and entrance area is available.
In this north facing 2bhk house, the dimension of the living room is 16’x9’9”. The dimension of the master bedroom is 10’x8’, and an attached toilet is 10’x3”. The dimension of the kid’s bedroom is 10’x8’. The dimension of the kitchen is 10’x6’. The dimension of the common toilet is 8’x4’. The dimension of the balcony is 21’6”x4’.
In this west facing 1bhk house, the dimension of the living room is 10’x8’. The dimension of the master bedroom is 10’x8’. The dimension of the kid’s bedroom is 15’9”x8’. The dimension of the kitchen cum dining area is 10’x6’. The dimension of the common toilet is 10’x3’. The dimension of the balcony is 16’x6’6”.
Download the Northwest Facing House Plan PDF and DWG Files
Northwest Facing House Plan pdf
Download the Northwest Facing House Plan pdf & dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com).
