2BHK Duplex House – North facing floor plan is given in this article. This is a 3bhk house plan including driver room. The length and breadth of the house plans are 32’ and 35’ respectively.
2BHK Duplex House | 1000 Sqft House | 3bhk House Plan with Maid Room
2BHK Duplex House – North facing floor plan is given in this article. This is a 3bhk house plan including a driver room. The length and breadth of the house plans are 32’ and 35’ respectively. This is a double story building with car parking. The built-up area of the ground floor is 656 sqft. The total built-up area of the first floor is 1022 sqft. On the ground floor, driver's room is available. On the first floor, two bedrooms are available.
This kind of house plan is very useful to people who are searching for floor plans like a 2bhk duplex house, north facing floor plan, 1000 sqft house, 3bhk house plan with maid room, north facing house plan with driver room, 2bhk duplex house plan, 2bhk duplex house plan north facing, floor plan with maids room, house plans with maids quarters, duplex house vastu plan, duplex house plans with car parking, north facing house plan with car parking, house plan with garage, 2bhk house plan with store room, and first floor plan with balcony north facing house.
2BHK Duplex House
North Facing Floor Plan | 2bhk Duplex House Plan North Facing
North Facing 2BHK House

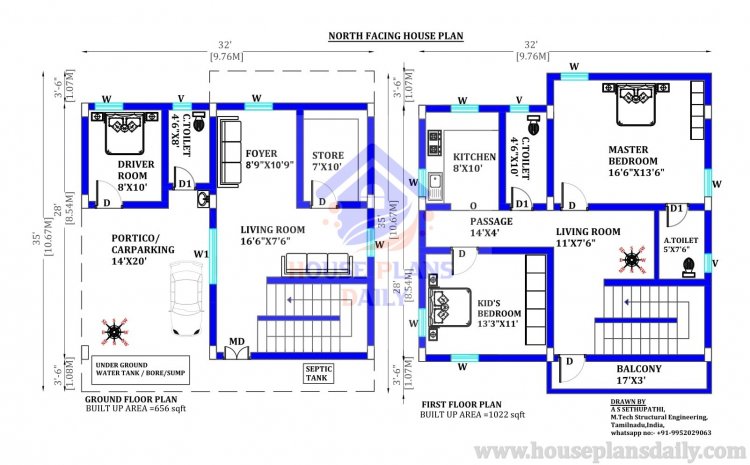

North facing floor plan and ground floor layout are given in the above image. In this 2bhk duplex house plan north facing, a driver room is available. The driver's room is provided separately from the main house. The total built-up area is 656 sqft. The living room or the hall, foyer, storeroom, car parking, portico, driver room, and common toilet is provided. The duplex staircase is provided near the main door. The length and breadth of the constructed area are 35’ and 28’ respectively.
On this north facing house plan with car parking, the dimension of the living room or the hall is 16’6”x7’6”. The dimension of the storeroom is 7’x10’. The dimension of the foyer is 8’9”x10’9”. The dimension of the driver room is 8’x10’. The dimension of the common toilet is ‘6”x8’. The dimension of the portico or car parking is 1’x20’.
The living room is placed in the north direction. The staircase is placed in the northwest corner. The storeroom is placed in the southwest corner. The car parking or portico is placed in the direction of the northeast corner. The driver's room is placed in the direction of the southeast corner. The driver’s common toilet is provided in the south direction.
First Floor Plan with Balcony North Facing House
Two Story North Facing House
In this first floor plan with a balcony north facing house, two bedrooms are available. The total built-up area of this first floor is 1022 sqft. On this layout, the living room or the hall, master bedroom with an attached toilet, passage, balcony, kid’s bedroom, kitchen, and common toilet are available. The staircase is provided between the living room and the balcony. This floor plan is prepared as per vastu shastra principles.
The dimension of the kitchen is 8’x10’. The dimension of the passage is 14’x4’. The dimension of the living room is 11’x7’6”. The dimension of the balcony is 17’x3’. The dimension of the master bedroom is 16’6”x12’6”. The dimension of the master bedroom’s attached toilet is 5’x7’6”. The dimension of the common toilet is 4’6”x10’. The dimension of the kid’s bedroom is 13’3”x11’. Each dimension is given in the feet.
The living room is placed in the north direction. The balcony is provided in the north direction, and the opening is provided from the living room. The staircase is placed in the northwest corner. The master bedroom is placed in the southwest corner. The children’s bedroom is placed in the direction of the northeast corner. The kitchen is placed in the direction of the southeast corner. The common toilet is provided in the south direction. The passage is provided in the east direction. The master bedroom’s attached toilet is provided in the west direction.
