East and West Facing House

East and west facing house plan as per vastu shastra

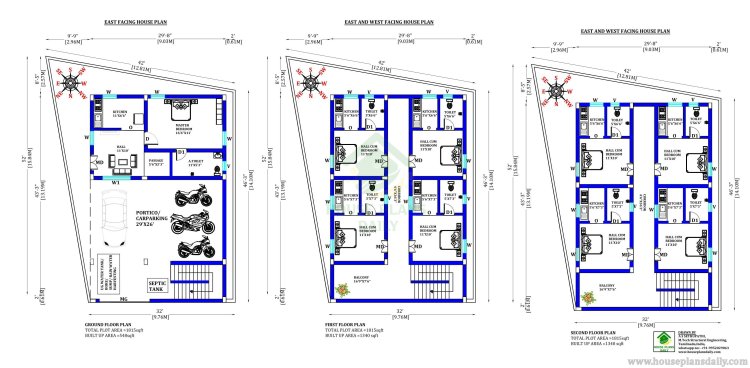

East and west facing house plan as per vastu shastra are given in this article. This is a 1bhk house plan.  On the ground floor, car parking, and one bedroom house is available. On the first floor, four 1bhk house plans are available. The total built up area of the ground floor, first floor and second floors are 548 sqft, 1340 sqft, and 1340 sqft respectively.  For more details, check out our website www.houseplansdaily.com.

1BHK House | 1 BHK House Plan with Vastu

1 bhk house plan with vastu ground floor layout

1 bhk house plan with vastu ground floor layout is given in this image. On the ground floor, the living room, kitchen, master bedroom with the attached toilet, passage, and portico or car parking is available. The total plot area is 1815 sqft. The constructed area of the ground floor is 548 sqft.

In this 1bhk room design, the dimension of the living room is 11’x10’. The dimension of the kitchen is 17’x11’. The dimension of the master bedroom is 16’6”x11’. The master bedroom’s attached toilet is 11’x5’3”. The dimension of the passage is 5’6”x5’3”. The dimension of the car parking or portico is 29’x26’.

On this 1bhk house, the living room area is provided in the east direction. The kitchen area is provided in the southeast corner. The master bedroom is provided in the southwest corner. The master bedroom’s attached toilet is provided in the direction of the west. The passage is provided in the north direction. The car parking or portico is provided in the north direction.

 1 BHK Floor Plan | One Bedroom House

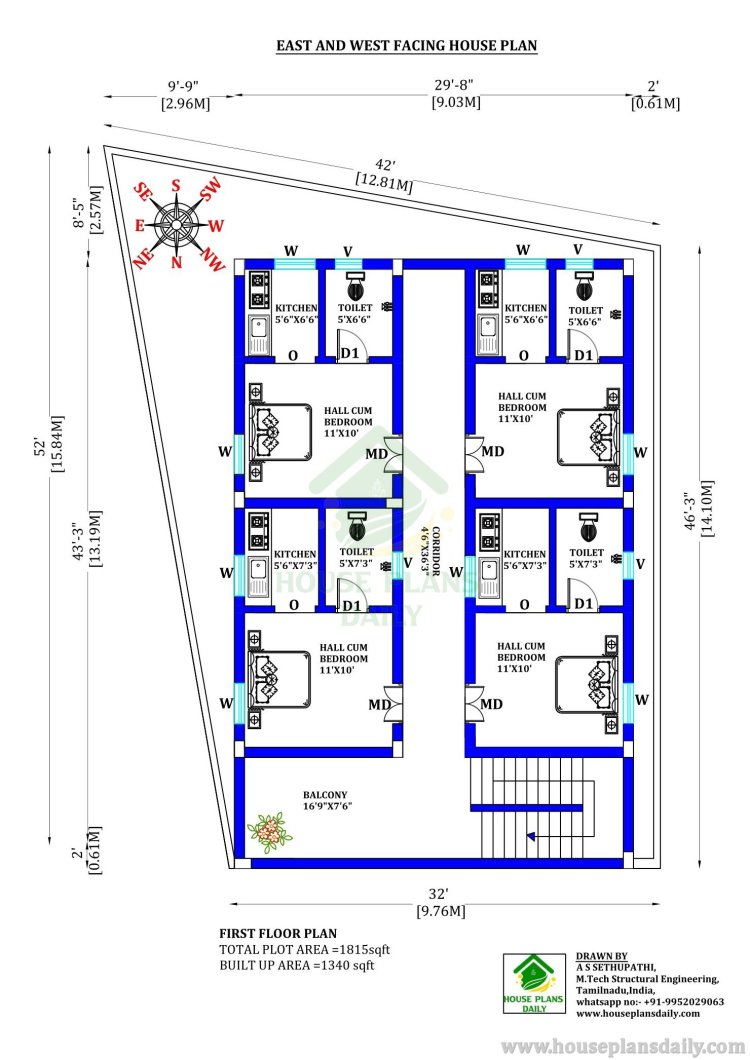

1 bhk floor plan first floor layout

1 bhk floor plan first floor layout is given in the above image. On this first floor, 4 one bedroom houses are available. Each house consists of the hall cum bedroom, kitchen, and toilet. In the house 1 & house 2, the dimensions are same whereas, the house 3 & house 4 is designed with same dimension. Each dimension is given in the feet and inch.

In these house 1 & house 2, the dimension of the hall cum bedroom is 11’x10’. The dimension of the kitchen is 5’6”x7’3”. The dimension of the toilet is 5’x7’3”. The dimension of the corridor is 4’6”x36’3”.

On this 1bhk room design, the house 1 & 3, hall cum bedroom is provided in the west direction, whereas house 2 & 4 is provided in the east direction. The kitchen is provided in the southeast corner. The toilet is provided in the south corner.  The corridor is provided in between the east and west houses

1 BHK House Plan Drawing Second Floor Layout

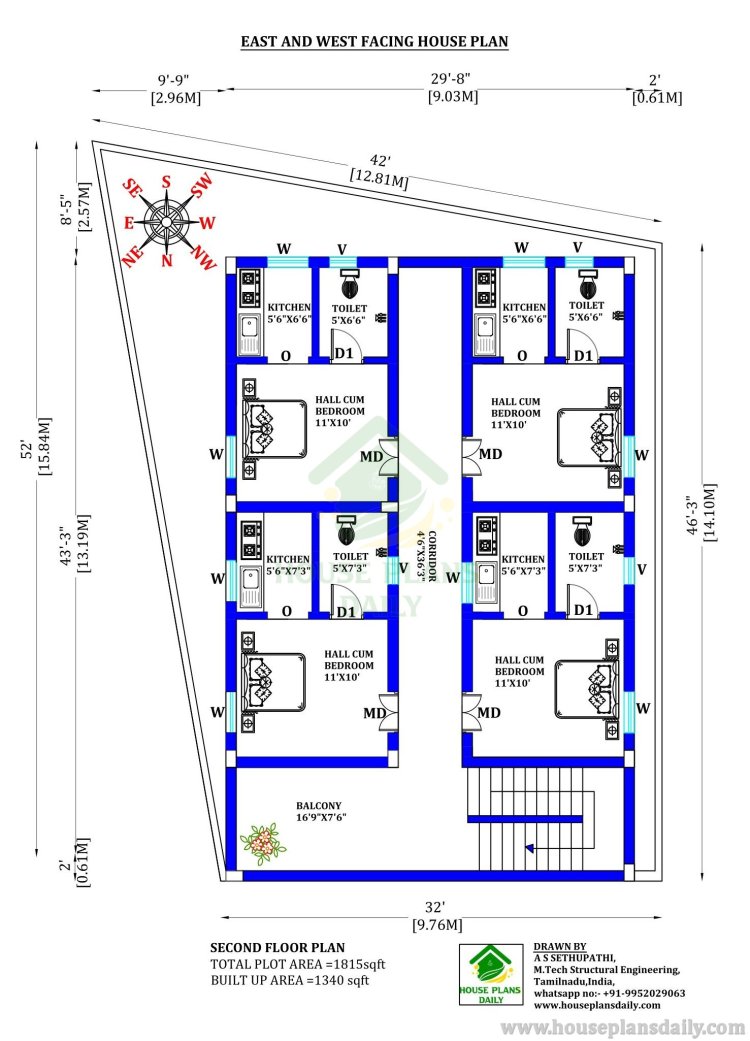

1 bhk house plan drawing second floor layout

1 bhk house plan drawing second floor layout is given in the above image. On this first floor, 4 one bedroom houses are available. Each house consists of the hall cum bedroom, kitchen, and toilet. In the house 1 & house 2, the dimensions are same whereas, the house 3 & house 4 is designed with same dimension. Each dimension is given in the feet and inch.

In these house 1 & house 2, the dimension of the hall cum bedroom is 11’x10’. The dimension of the kitchen is 5’6”x7’3”. The dimension of the toilet is 5’x7’3”. The dimension of the corridor is 4’6”x36’3”.

On this 1bhk room design, the house 1 & 3, hall cum bedroom is provided in the west direction, whereas house 2 & 4 is provided in the east direction. The kitchen is provided in the southeast corner. The toilet is provided in the south corner.  The corridor is provided in between the east and west houses

Refer to These Articles

·         1800 Sqft East Facing House Plan | 2 Bedroom House Plan East Facing

·         Single Floor Design House | 30x50 East Facing 2bhk House

·         Design of Ground Floor House | North Facing House Plan

·         30x60 North Facing House Plans 2bhk | 2 Bedroom Home

·         East Facing Duplex House Plan with Elevation Design | 4100 Sqft

Download the 1BHK House Plan PDF and DWG Files

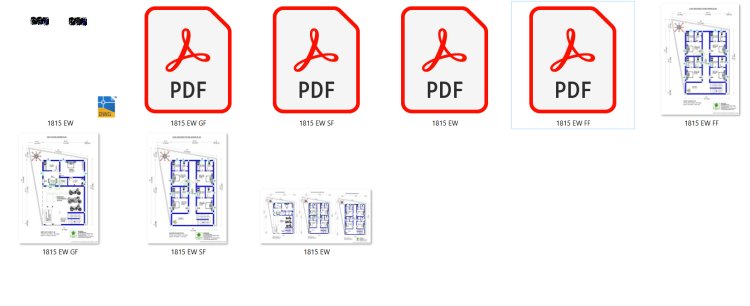

1bhk house plan pdf and dwg files

Download the 1bhk house plan pdf and dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com).
